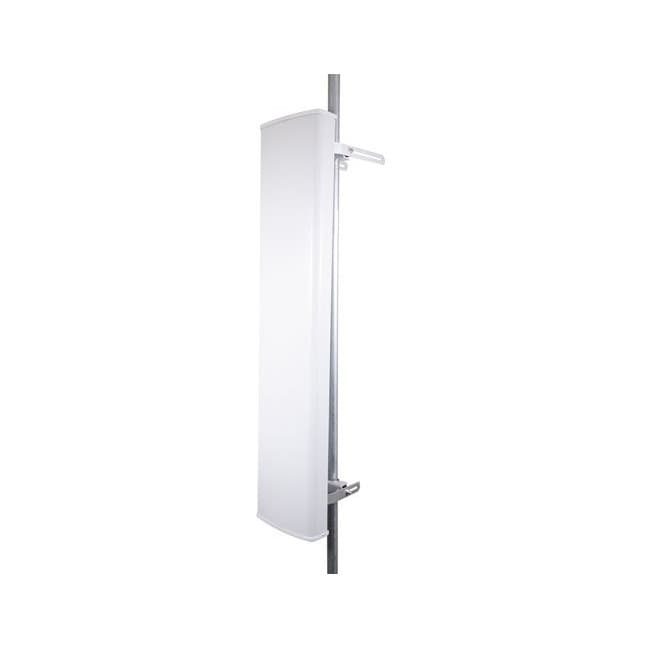

KP Performance Antennas 3.3 - 4.2 GHz, 18 dBi, 65 Degree, ± 45 Degrees Slant Sector Antenna

ISP Supplies supplies the KP Performance Antennas 3.3 - 4.2 GHz, 18 dBi, 65 degree, ± 45 degrees slant sector antenna. KP Performance's KP-3SX8-65 3.5 GHz 8-port sector antenna with type N connectors provides industry leading gain, side lobes suppression, and high front to back ratio. The KP-3SX8-65 has gain performance of 16 to 18 dBi gain with 65^° beamwidth and is perfectly suited for macro base station or small cell deployments. Available in dual +/-45 slant polarization, this antenna works from 3.3 - 4.2 GHz.

The KP-3SX8-65 from KP Performance patterns are engineered to be symmetric in both polarizations, which will minimize chain imbalance. The 8 type N connectors make 2x2, 4x4, and 8x8 MIMO configurations possible for high speeds or multiple technology deployments. The sector antenna’s 17 dB side lobe suppression and 30 dB front to back ratio allows for channel (frequency) reuse and can reach high levels of spectral efficiency in the most challenging and noisy environments.

The KP-3SX8-65 sector antenna with 8 x N-type female connector has Universal radio brackets that are compatible with many popular Cambium PMP/ePMP, Ubiquiti Rocket/Prism, Mimosa, and Baicells radios.
