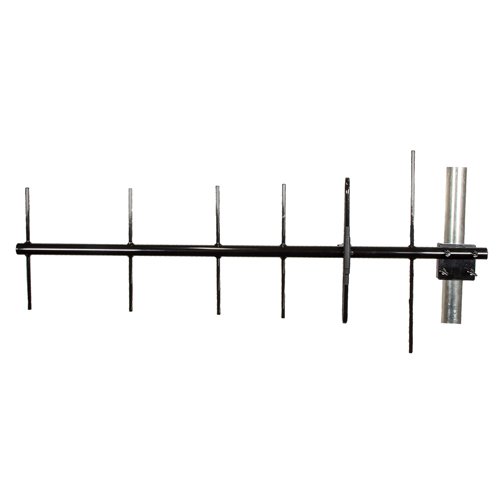

400 MHz to 470 MHz Yagi Antenna, 10 dBi, Type N Female Connector, Pro-Series with Adjustable Polarization
- SKU: KP-400SPY10
$156.41 $173.79
+ $33.45 Tariff
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
10 dBi 400MHz Single Pol Yagi - 1 Pack Boxes
Specifications
Specifications KP-400SPY10
| Frequency Range | 400 MHz to 470 MHz |
| Polarization Type | Horizontal or Vertical |
| Gain | 10 dBi |
| Vertical Beamwidth | 55° |
| Horizontal Beamwidth | 70° |
| F/B Ratio | 17 dB |
| VSWR | 1.7:1 max |
| Connector Type | Type N Female |
| Length | 38.4 in |
| Width | 16.5 in |
| Height | 2.4 in |
| Mounting Mast Daimeter | 0.75 to 3 in |
| Weight | 6 lbs (2.72 kg) |
