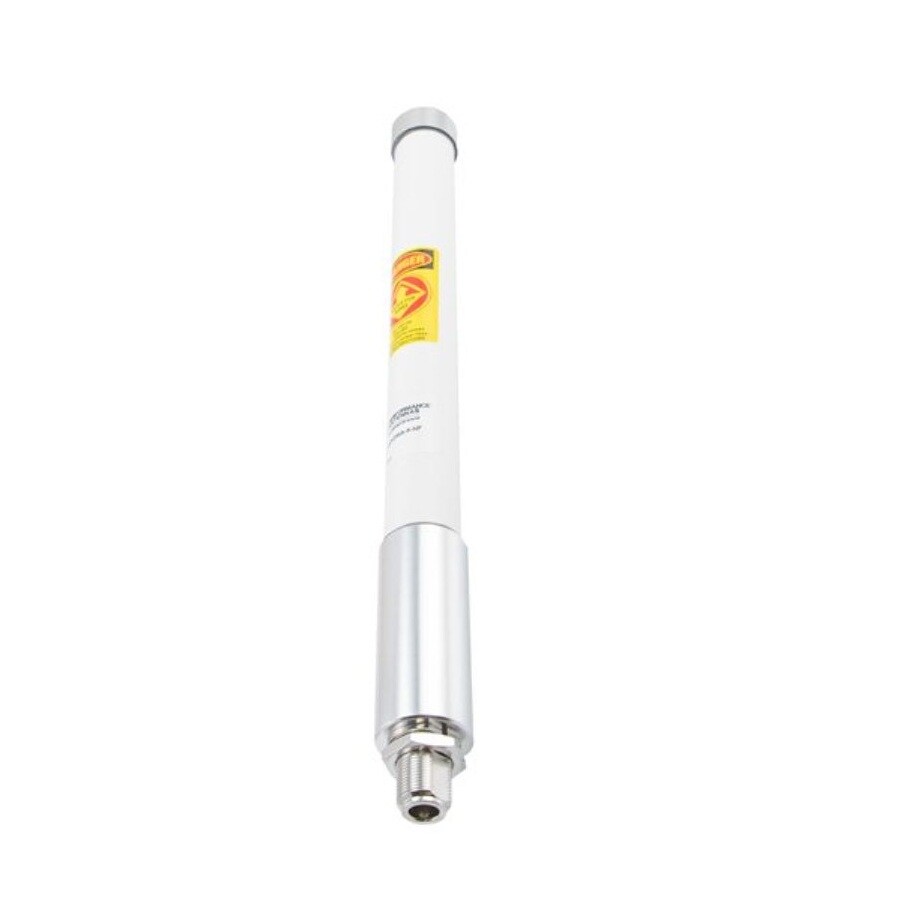

KP Performance Antennas 5.1 - 5.8 GHz, 6 dBi Omni Antenna
- SKU: KP-58-SPOMA-6-NF
Product Information
ISP Supplies supplies the KP Performance Antennas 5.1 - 5.8 GHz, 6 dBi omni antenna. The KP Performance KP-58-SPOMA-6-NF with integrated N-Female connector is an economical yet high performance omnidirectional antenna designed for 5.1 - 5.8 GHz band applications. Compact and lightweight, it is ideally suited for IEEE 802.11a, 802.11b, 802.11n, 802.11ac, and 802.11ax wireless LANs, public wireless hotspot application, public safety, and other multipoint applications where wide coverage is desired and multiple frequencies are available for use.
The internal N-Female bulkhead connector on the KP-58-SPOMA-6-NF enables it to be mounted through the wall of an equipment enclosure. The included mast mounting kit consists of a heavy-duty steel bracket and a pair of u-bolts which allows installation on masts up to 2.0" in diameter.
Constructed for all weather operation, the KP-58-SPOMA-6-NF omnidirectional features collinear brass elements inside a durable UV-stable white PVC radome. The end cap is sealed while the drain holes at the base help prevent condensation build-up inside the antenna.
Specifications
Specifications KP-58-SPOMA-6-NF
| Frequency Range | 5.1 GHz to 5.875 GHz |
| Polarization Type | Vertical |
| Gain | 8 dBi |
| Vertical Beamwidth | 16° |
| Horizontal Beamwidth | 360° |
| Input Power | 50 W |
| Impedance | 50 Ohms |
| Connector Type | Type N Female |
| Dimension | 13 in L x 4 in W x 2.5 in H |
| Weight | 1.6 lbs |
