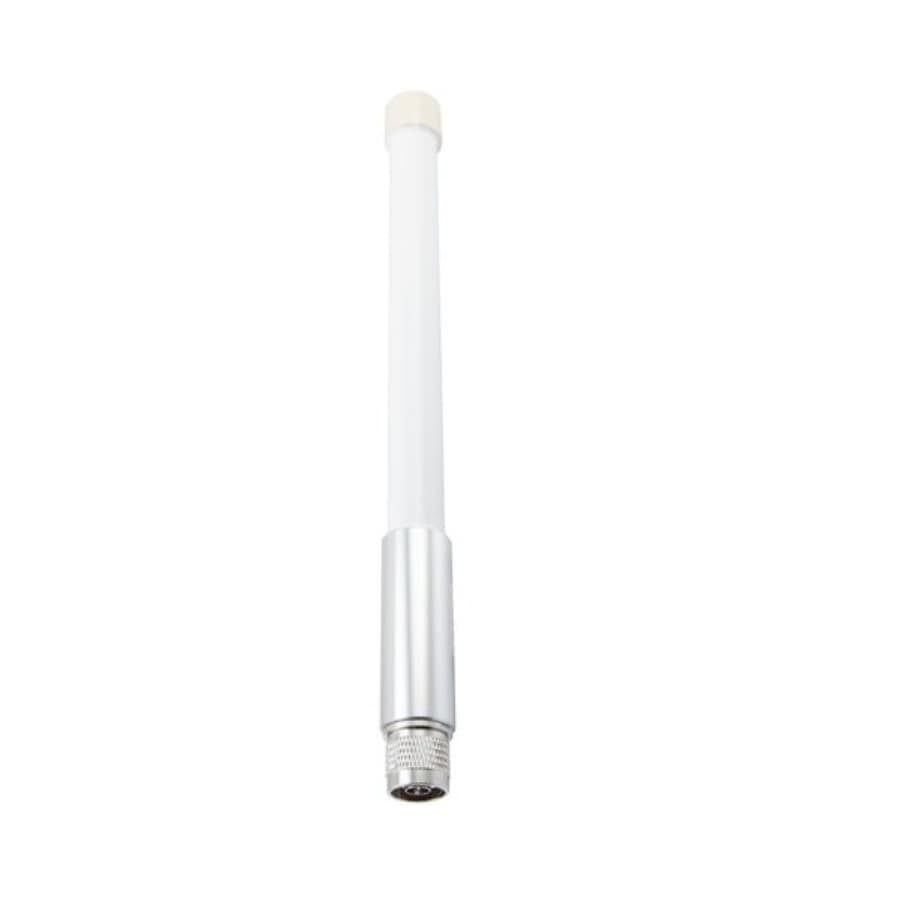

KP Performance Antennas 5.8 GHz, 6 dBi Omni Antenna
- SKU: KP-58VOMNI-6
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
ISP Supplies supplies the KP Performance Antennas 5.8 GHz, 6 dBi omni antenna. The KP Performance KP-58VOMNI-6 with N-Male connector is an economical yet high performance omnidirectional antenna designed for the 5 GHz unlicensed band. This compact and lightweight antenna is ideally suited for IEEE 802.11a, 802.11n, 802.11ac, and 802.11ax wireless LANs, IoT, public safety and other multipoint applications where wide coverage is desired.
KP Performance KP-58VOMNI-6 omnidirectional antenna features fully sealed brass elements inside a durable UV-stable fiberglass radome. This is a lightweight yet rugged design for industrial and other harsh environments. The integrated N-Male connector on the KP-58VOMNI-6 omnidirectional antenna allows it be mounted to various types of N-Female bulkhead connectors and adapters as well as N-Female type magnetic mounts.
Features
• Durable UV-stable fiberglass radome
• Industrial grade design for harsh environments
• Integral N-male connector
• Fully sealed brass elements
Specifications
Specifications KP-58VOMNI-6
| Frequency Range | 5.15 GHz to 5.85 GHz |
| Polarization Type | Vertical |
| Gain | 6 dBi |
| Vertical Beamwidth | 28° |
| Horizontal Beamwidth | 360° |
| Input Power | 100 W |
| Impedance | 50 Ohms |
| Connector Type | Type N Male |
| Dimension | 14.5 in L x 2 in W x 2 in H |
| Weight | 0.45 lbs |
