KP Performance Antennas Cambium ePMP 2000 4.9 - 6.4 GHz, 19 dBi, 30 Degree Horn Antenna

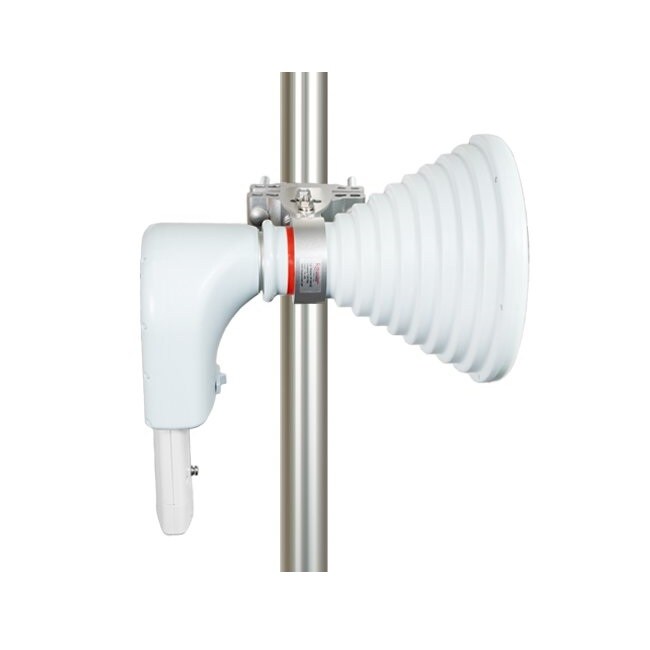

ISP Supplies supplies the KP Performance Antennas Cambium ePMP 2000 4.9 - 6.4 GHz, 19 dBi, 30 degree horn antenna. The KP-5HA-30-E2K is a high performance symmetrical horn antenna with a 6 dB beamwidth of 30 degree and a stable gain of 19 dBi and over an ultra-wide bandwidth of 4.9 – 6.4 GHz. This horn antenna is packaged with KP-5PDA-EPMP2000 radio adapter which is designed specifically for the Cambium ePMP 2000 radio.

The horn antenna’s symmetrical radiation patterns was optimized using advanced genetic algorithm techniques to have significantly reduced side lobes that rapidly drops below 30 dB outside the main beam and a minimum front to back of 43 dB. The highly suppressed side lobes and superior front to back allows for channel (frequency) reuse and can reach high levels of spectral efficiency in the most challenging and noisy environments. The polarization is adjustable between horizontal/vertical and ± 45 degree slant, making the horn compatible with any 4.9 – 6.4 GHz single or dual polarization 2 x 2 MIMO radio and eliminates the risk of link strength degradation due to polarization mismatch.

The KP-5HA-30-E2K is a push-in adapter that features simplified installation with patented, quick connect waveguide technology to the antenna and a durable housing to snap in the radio without any additional cables or tapings. The weatherproof adapter is built to withstand challenging environments subject to intense UV, rain, snow and ice and \is highly reliable over a longer product lifetime.
