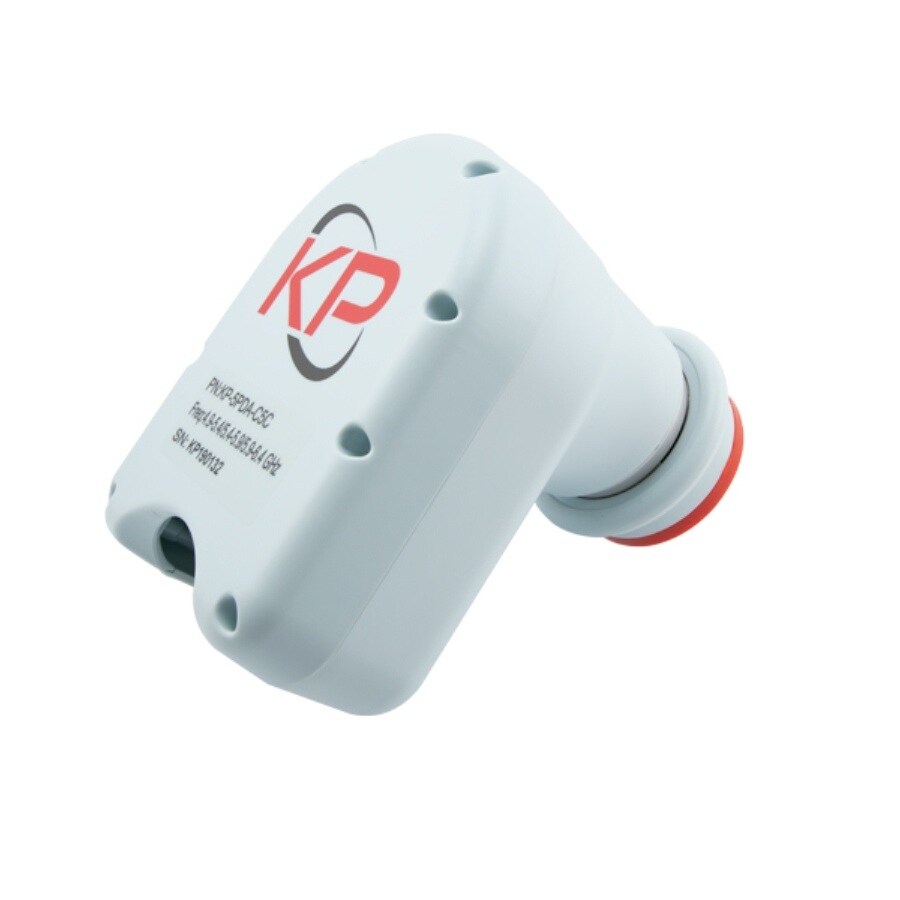

KP Performance Antennas Mimosa C5c Quick Connect Adapter
- SKU: KP-5PDA-C5C
Product Information
ISP Supplies supplies the KP Performance Antennas Mimosa C5c quick connect adapter. The KP-5DPA-C5c is a quick connect adapter for use with KP 5 GHz ProLine parabolic antennas that is designed specifically for the Mimosa C5c radio.
The KP-5DPA-C5c is a push-in adapter that features simplified installation with patented, quick-connect waveguide technology to the antenna and a durable housing to snap in the radio without any additional cables or taping. The weatherproof adapter is built to withstand challenging environments subject to intense UV, rain, snow, and ice and is highly reliable over a longer product lifetime.
The adapter can be used with KP’s 5 GHz ProLine parabolics in point-to-point applications to improve link strength and reduce interference with the radio. The KP-5DPA-C5c is also available as a packaged kit with ProLine 1 ft and 2 ft parabolic antennas.
Specifications
Specifications KP-5PDA-C5C
| Antenna Connection | Quick-Connect Waveguide |
| Frequency | 4.9 – 6.4 GHz |
| Return Loss* | 14 typ | 12 max |
| VSWR* | 1.5 typ | 1.7 max |
| Port Isolation | 30 dB typ | 25 dB max |
| Compatible Radios | Mimosa® C5c |
| Compatible Antennas | KP®: 1ft and 2ft 5 GHz ProLine Parabolic |
| Materials | Aluminium Alloy, Rubber, Stainless Steel |
| Wind Velocity, Survival | 201 km/h | 125 mph |
| Temperature Range | -40° to +60° C | -40° to +140° F |
| Dimension | 7.5 in L x 7.5 in W x 6.5 in H |
| Weight | 1.4 lbs |
