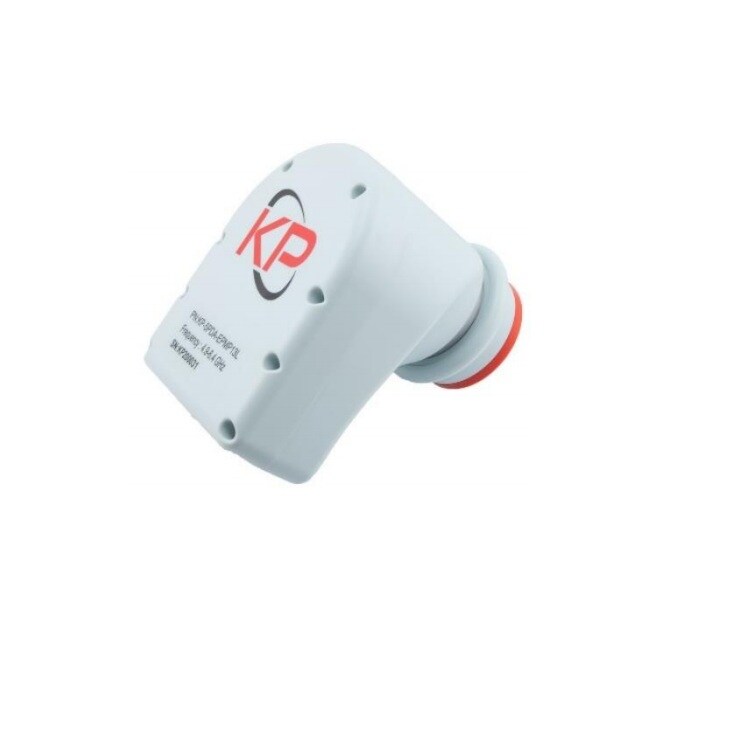

Cambium ePMP1000, 3000L, and Force 300CSM Adapter for ProLine 5GHz Parabolic and Horn Antennas
- SKU: KP-5PDA-EPMP13L
$50.98 $56.64
+ $10.90 Tariff
Product Information
ProLine 5GHz Adapter Cambium 1KL, Force 300, 3KL
Specifications
Specifications KP-5PDA-EPMP13L
| RF connection | Quick-Connect Waveguide |
| Frequency | 4.9 – 6.4 GHz |
| Return Loss | 14 typ | 12 max |
| VSWR | 1.5 typ | 1.7 max |
| Port Isolation | 30 dB typ | 25 dB max |
| Compatible Radios | Cambium® ePMP1000TM, ePMP3000L TM, Force 300CSMTM |
| Compatible Antennas | KP® 5 GHz ProLine Parabolics and Horns |
| Wind Velocity, Survival | 201 km/h | 125 mph |
| Temperature Range | -40° to +60° C | -40° to +140° F |
| Dimension | 8 in L x 8 in W x 7 in H |
| Weight | 1.7 lbs |
