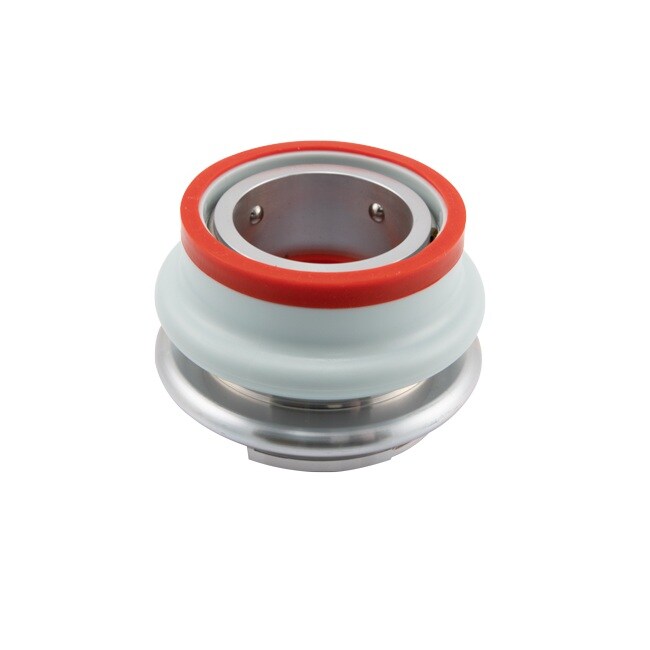

KP Performance Antennas Ubiquiti IsoStation / PrismStation Quick Connect Adapter
- SKU: KP-5PDA-UIS5
Product Information
ISP Supplies supplies the KP Performance Antennas KP Performance Antennas Ubiquiti IsoStation / PrismStation quick connect adapter. The KP-5PDA-UIS5 is a quick connect adapter for use with KP ProLine 5 GHz parabolic and horn antenna that is designed specifically for the Ubiquiti PrismStation 5AC, IsoStation 5AC, and IsoStation M5 radios.
The KP-5PDA-UIS5 is a push-in adapter that features simplified installation with patented, quick-connect waveguide technology to the antenna and a twist-snap fit for the radio without any additional cables or taping. The weatherproof adapter is built to withstand challenging environments subject to intense UV, rain, snow, and ice and is highly reliable over a longer product lifetime.
The adapter and radios can be used in point-to-point applications with KP’s 5 GHz ProLine parabolics or in point to multipoint applications with KP’s 5 GHz ProLine horns. In both applications the antennas will improve link strength and reduce interference, allowing the radio to reach its highest modulation and throughput.
The KP-5PDA-UIS5 is also available as a packaged with ProLine 1 ft and 2 ft parabolic antennas.
Specifications
Specifications KP-5PDA-UIS5
| Compatible Radios | Ubiquiti®: PrismStationTM 5AC IsoStationTM 5AC IsoStationTM M5 |
| Compatible Antennas KP®: | 1ft and 2ft 5 GHz ProLine Parabolics |
| Materials | Aluminium Alloy, Rubber |
| Wind Velocity, Survival | 201 km/h | 125 mph |
| Temperature Range | -40° to +60° C | -40° to +140° F |
| Dimension | 3.5 in L x 3.5 in W x 2.75 in H |
| Weight | 0.6 lbs |
