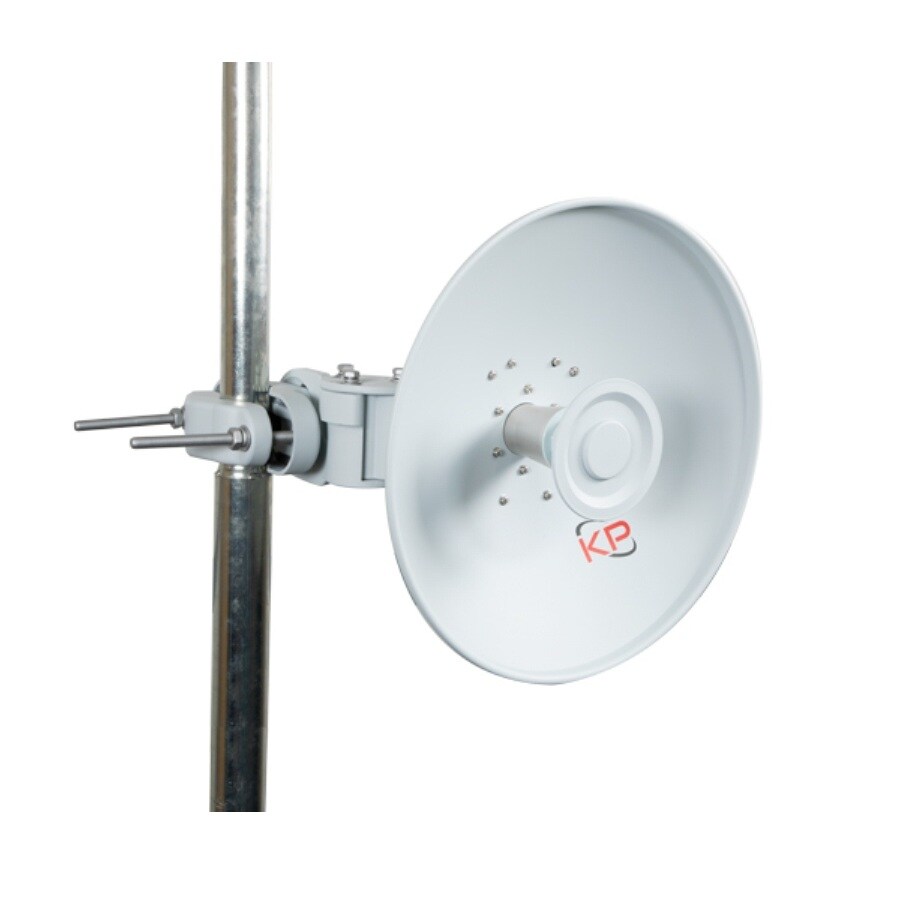

4.9 GHz to 6.4 GHz, 1-Foot Parabolic Dish Antenna with Isostation M5, Isostation 5AC, Prismstation 5AC
- SKU: KP-5PDUIS5-1
$140.57 $156.19
+ $30.07 Tariff
Product Information
4.9 GHz to 6.4 GHz, 1-Foot Parabolic UB Isostation
Specifications
Specifications KP-5PDUIS5-1
| Frequency Range | 4900-6400 |
| Dish Diameter | 15" (1-Foot) |
| Polarization Type | H/V or ±45 Slant |
| Gain | 24.5 dBi |
| Vertical Beamwidth | 10° |
| Horizontal Beamwidth | 10° |
| Cross Polarization | 25 dB |
| F/B Ratio | 35 dB |
| Fine Azimuth Adjustment | ±20° |
| Fine Elevation Adjustment | ±22° |
| Mounting Type | Pipe Mount |
| Dimension | 17 in L x 16.5 in W x 9 in H |
| Weight | 17 lbs |
| Antenna-to-Pipe Distance | 172 mm | 6.8 in |
