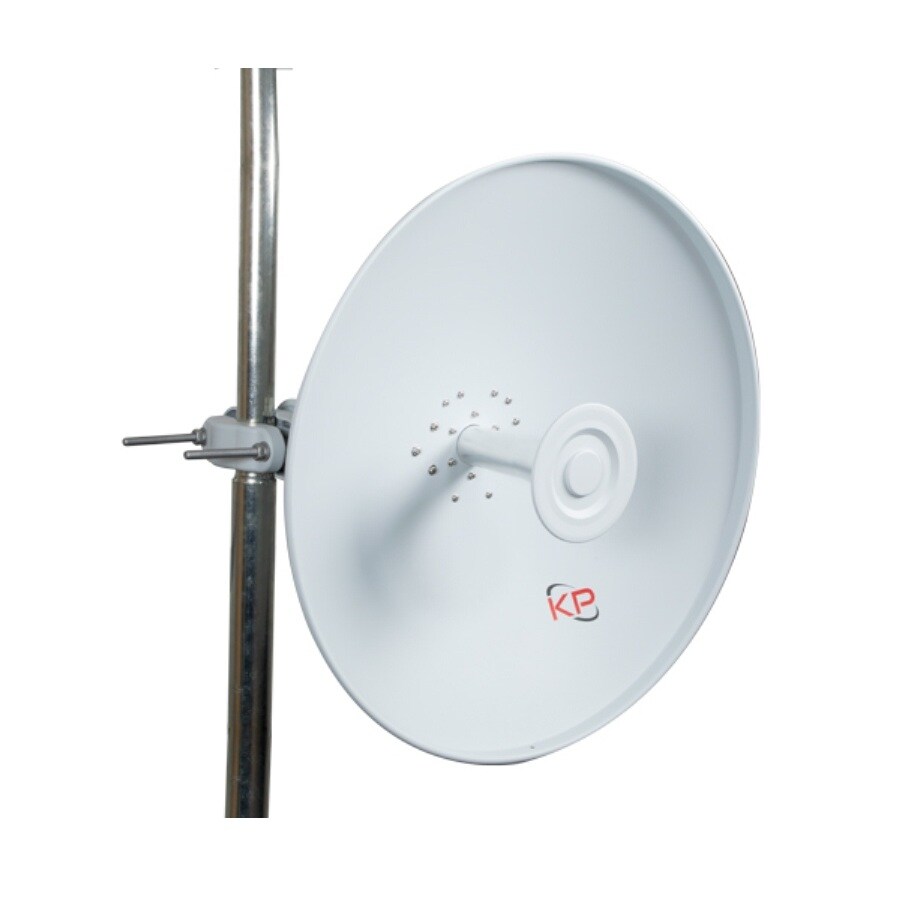

4.9 GHz to 6.4 GHz, 2-Foot Parabolic Dish Antenna with Isostation M5, Isostation 5AC, Prismstation 5AC
- SKU: KP-5PDUIS5-2
$211.85 $235.39
+ $45.31 Tariff
Product Information
4.9 GHz to 6.4 GHz, 2-Foot Parabolic UB Isostation
Specifications
Specifications KP-5PDUIS5-2
| Frequency Range | 4900-6400 |
| Dish Diameter | 25" (2-Foot) |
| Polarization Type | H/V or ±45 Slant |
| Gain | 29.5 dBi |
| Vertical Beamwidth | 4.7° |
| Horizontal Beamwidth | 4.7° |
| Cross Polarization | 32 dB |
| F/B Ratio | 40 dB |
| Mounting Type | Pipe Mount |
| Dimension | 30 in L x 30 in W x 12.5 in H |
| Weight | 20 lbs |
| Antenna-to-Pipe Distance | 172 mm | 6.8 in |
