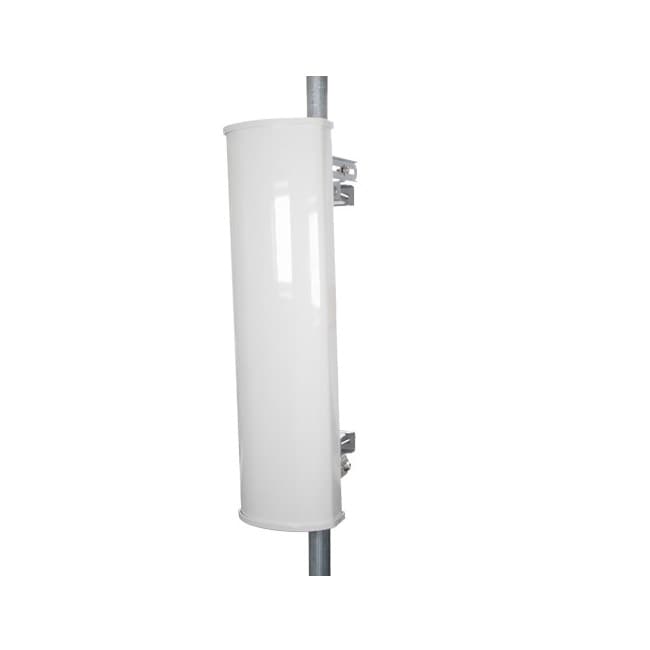

5925 - 7125MHz, 17dBi, 90-degree +/-45 Dual pol Wifi 6e Sector antenna, 2-port
- SKU: KP-6SX2-90
$423.71 $470.79
+ $90.63 Tariff
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
5925 - 7125MHz, 17dBi, 90-degree +/-45 Dual pol Wifi 6e Sector antenna, 2-port
Specifications
Specifications
| Dimension (LxWxH) | 24.8 in x 7.08 in x 3.14 in |
| Weight | 7.05 lbs [3.2 kg] |
| Design | Sector |
| Band Type | Single |
| Radiation Pattern | Omni Directional |
| Polarization | 45 Deg. Slant |
| Connector Type | N Female |
| Interface 2 | N Female |
| Number of Ports | 2 |
| Lightning Protection | DC Grounded |
| Input VSWR | 2:1 |
| Impedance | 50 Ohms |
| Front to Back Ratio | 25 dB |
| Electrical Downtilt | 3 Degrees |
| Port to Port Isolation | 25 dB |
| Input Power | 100 Watts |
| Range | 5.925 to 7.125 GHz |
| Gain | 17 dBi |
| Horizontal HPBW | 90 Degrees |
| Vertical HPBW | 5 Degrees |
| Port to Port Isolation | 25 dB |
| Front to Back Ratio | 25 dB |
| Operating Range | -40 to +60 deg C |
| Wind Survivability | 134 MPH [215.65 KPH] |
