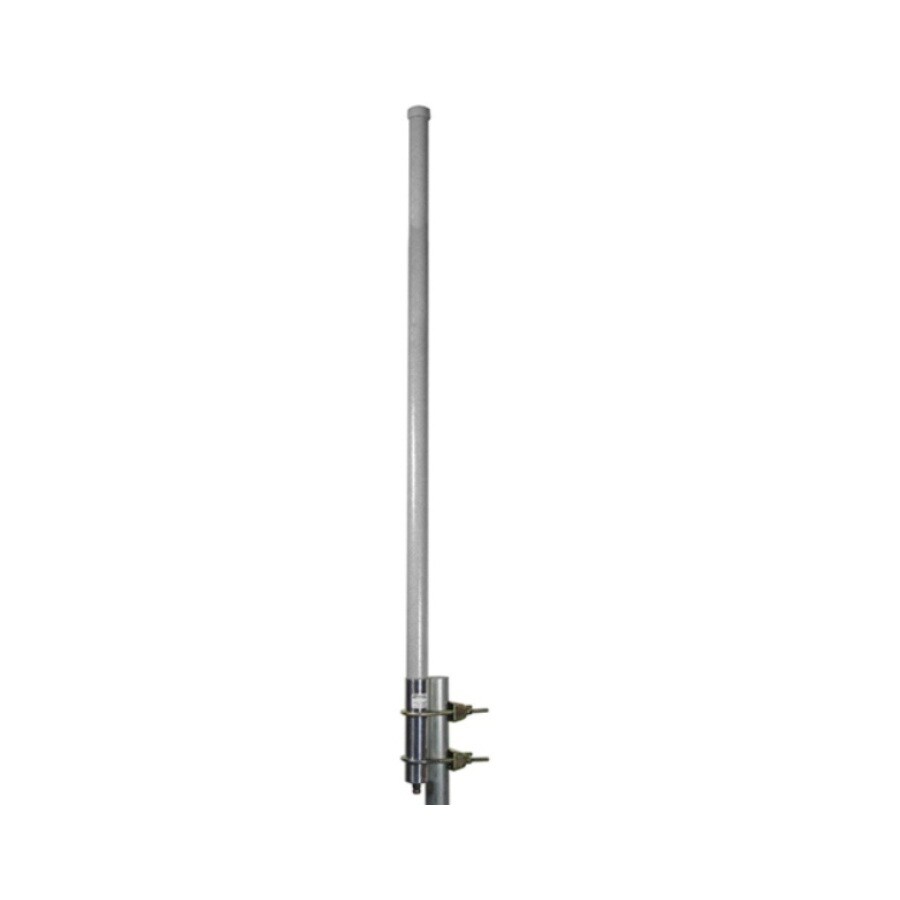

KP Performance Antennas 824 - 960 MHz, 8 dBi, Vertical Pol Omni Antenna
- SKU: KP-900-SPOMA-8
Product Information
ISP Supplies supplies the KP Performance Antennas 824 - 960 MHz, 8 dBi, vertical pol omni antenna. The KP-900-SPOMA-8 is a high performance omnidirectional antenna designed for the 900 MHz ISM band. It is ideally suited for multipoint, non line of sight (NLOS) and mobile applications where high gain and wide coverage is desired. Typical applications include 900 MHz Wireless LAN, SCADA, Wireless Video Links, LPWAN/IoT/M2M, and 900MHz cellular band applications.
This antenna features an integral N-Female type connector that mounts through the wall of an equipment enclosure. Included with the KP-900-SPOMA-8 is a dual u-bolt mast mounting kit. Consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 2.0" in diameter.
This omni antenna’s construction features a rugged 1.58" diameter fiberglass radome for durability, aesthetics and long service life. It is designed for all weather operation.
Features
• All weather operation
• Includes heavy duty steel mast mounting brackets
• Lightweight fiberglass radome
• Integral N-Female connector
• Rugged industrial grade design
Specifications
Specifications KP-900-SPOMA-8
| Frequency Range | 824-960 MHz |
| Polarization Type | Vertical |
| Gain | 8 dBi |
| Vertical Beamwidth | 15° |
| Horizontal Beamwidth | 360° |
| Electrical Downtilt | 0° |
| VSWR | 1.7 Typ |
| Connector Type | Type N Female |
| Diameter | 38 mm | 1.5 in |
| Dimension | 44 in L x 3 in W x 3 in H |
| Weight | 4.7 lbs |
