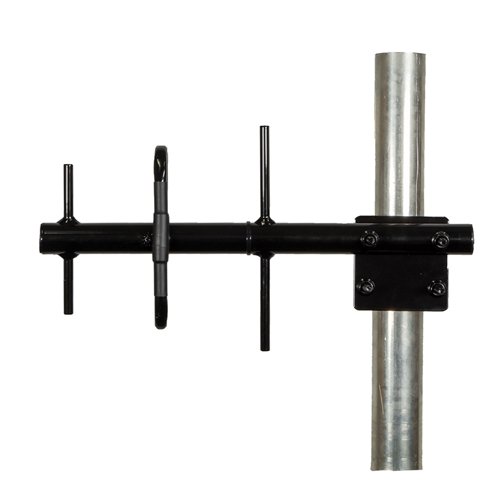

KP Performance Antennas 880 - 960 MHz, 7 dBi Yagi Antenna, 36" LMR400 Pigtail Coax with Type N-Female Connector
- SKU: KP-960SPY7
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
ISP Supplies supplies the KP Performance Antennas 880 - 960 MHz, 7 dBi yagi antenna. The KP Performance KP-960SPY7 880 - 960 MHz yagi antenna is designed for the most rugged conditions and equipped with an N-Female connector, coaxial connections to a radio are simple and easy. This 900 MHz antenna provides 7 dBi of gain and adjustable polarization. The KP-960SPY7 is ideally suited for 900 MHz ISM bands. This 7 dBi antenna supports land mobile radio for land transportation, utility, manufacturing, and petrochemical companies (oil and gas).
Measuring 13.4 inches long, the N-Female KP-960SPY7 from KP Performance is manufactured using robust 5/16” aircraft quality aluminum elements. The KP-960SPY7 elements are completely welded to a 1” boom and painted black. This ensures performance and survivability in the toughest environments. KP-960SPY7 yagi antenna from KP Performance operating from 880 MHz to 960 MHz can cover all your needs for land mobile radio and utilities communications.
Specifications
Specifications KP-960SPY7
Polarization Type | Horizontal or Vertical |
Gain | 7 dBi |
Vertical Beamwidth | 60° |
Horizontal Beamwidth | 100° |
F/B Ratio | 15 dB |
VSWR | 1.5:1 |
Connector Type | Type N Female |
Length | 13.4 in |
Width | 7.1 in |
Height | 2.4 in |
Mounting Mast Daimeter | 0.75 to 2 in |
Weight | 3 lbs (1.36 kg) |
