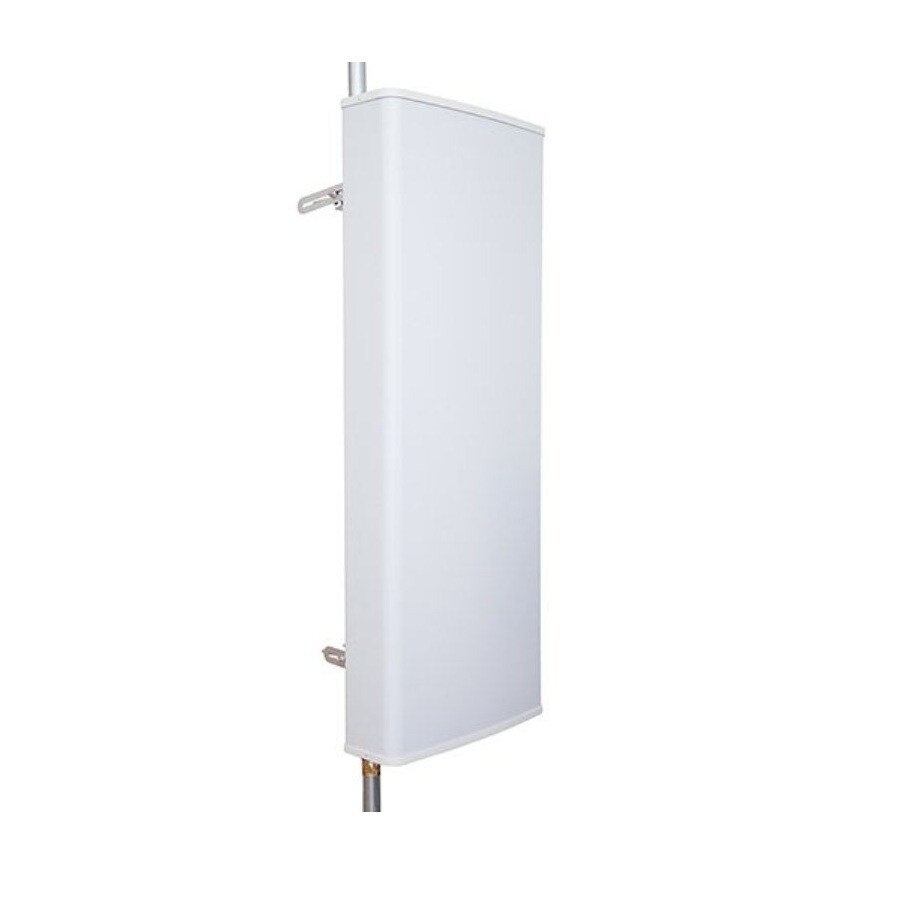

KP Performance 470MHz-698MHz 12dBi 2-Port H/V Pol 65deg Sector Antenna
- SKU: KP-TWDP65S-12
$761.31 $845.90
+ $162.84 Tariff
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance Dual Polarity 12dBi 65 Degree Sector Antenna
Specifications
Specifications KP-TWDP65S-12
| Electrical Specification | |
| Frequency Band | 470-698 MHz |
| Gain | 12±0.5 dBi |
| Polarization | Horizontal/Vertical |
| Horizontal HPBW | 65±5 Degree |
| Horizontal Squint | ±2 Degree |
| Vertical HPBW | 25±5 Degree |
| Electrical Downtilt | 0 Degree |
| Front-to-Back Ratio @ 180°±30° | 25 typ | 20 min dB |
| Cross-polarization Ratio | 30 dB |
| VSWR | 1.3 typ | 1.5 max |
| Return Loss | 17 typ | 14 max dB |
| Port-to-Port Isolation | 30 dB |
| Max. Input Power per Port | 50 W |
| Impedance | 50 Ohms |
| Mechanical Specifications | |
| RF Connector Type | N-Type Female |
| RF Connector Quantity | 2 |
| RF Connector Position | Bottom of radome |
| Electrical Grounding | RF connector grounded to reflector and mounting bracket |
| Radome Material | UV resistant PVC |
| Ingress Protection | IP55 rain and dust resistant |
| Max. Wind Speed | 160km/h | 100mph |
| Temperature Range | -40° to +60° C | -40° to +140° F |
| Bracket Specifications | |
| Material Type | Powder Coated Galvanized Steel |
| Mechanical Tilt (Degree) | ±15 |
| Mounting Type | Pipe Mount |
| Mounting pole diameter | 19 mm – 114 mm | 0.75 in – 4.5 in |
| Antenna Dimensions | |
| Dimension | 47.5 in L x 17.7 in W x 5.1 in H |
| Weight | 25.3 lbs |
