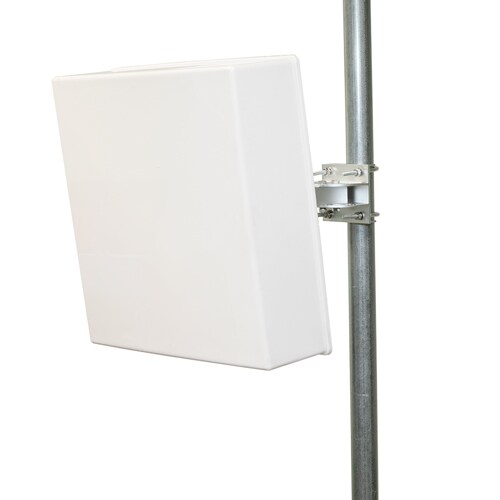

KP Performance 470MHz-698MHz 9dBi 2-Port H/V Pol 65deg Flat Panel Antenna
- SKU: KP-TWDPFP9
$124.73 $138.59
+ $26.68 Tariff
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance 470 MHz-698 MHz, 9 dBi, 65 Degree Dual Polarity, Flat Panel Antenna
Specifications
Specifications KP-TWDPFP9
| Electrical Specification | |
| Frequency Band | 470-698 MHz |
| Gain | 9.0±1 dBi |
| Polarization | Horizontal/Vertical |
| Horizontal HPBW | 75±10 Degree |
| Horizontal Squint | ±2 Degree |
| Vertical HPBW | 70±10 Degree |
| Electrical Downtilt | 1 Degree |
| Front-to-Back Ratio @ 180°±30° | 20 typ | 15 min dB |
| Cross-polarization Ratio | 25 dB |
| VSWR | 1.5 typ | 2.0 max |
| Return Loss | 14 typ | 12 max dB |
| Port-to-Port Isolation | 25 dB |
| Max. Input Power per Port | 50 W |
| Impedance | 50 Ohms |
| Mechanical Specifications | |
| RF Connector Type | N-Type Female |
| RF Connector Quantity | 2 |
| RF Connector Position | Bottom of radome |
| Electrical Grounding | RF connector grounded to reflector and mounting bracket |
| Radome Material | UV resistant ABS |
| Ingress Protection | IP55 rain and dust resistant |
| Max. Wind Speed | 210km/h | 130mph |
| Temperature Range | -40° to +60° C | -40° to +140° F |
| Bracket Specifications | |
| Material Type | Powder Coated Galvanized Steel |
| Mechanical Tilt (Degree) | ±15 |
| Mounting Type | Pipe Mount or Wall Mount |
| Mounting pole diameter | 30 mm – 90 mm | 1.2 in – 3.5 in |
| Antenna Dimensions | |
| Dimension | 27.56 in L x 19.29 in W x 15.16 in H |
| Weight | 2.9 lbs |
