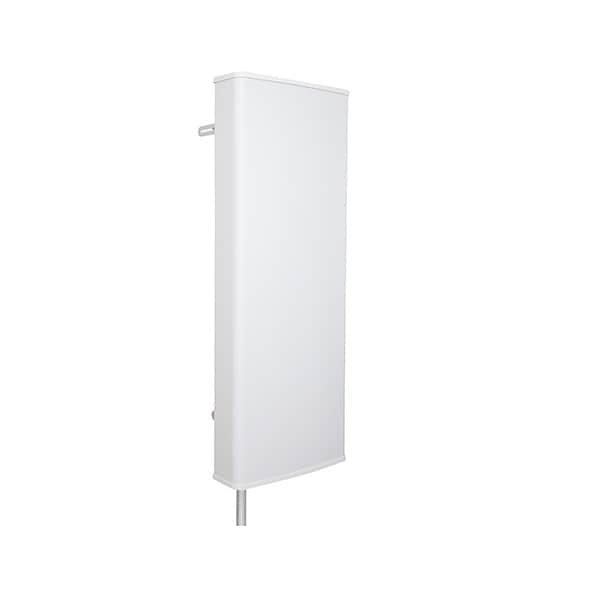

KP Performance Antennas 470 - 698 MHz, 12 dBi, 65 Degree Sector Antenna
- SKU: KP-TWVP65S-12
$583.11 $647.90
+ $124.72 Tariff
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
ISP Supplies supplies the KP Performance Antennas 470 - 698 MHz, 12 dBi, 65 degree sector antenna. The KP Performance KP-TWVP65S-12 is a 470 - 698 MHz, vertically polarized, 65 degree sector antenna designed for TV white space (TVWS) applications. The 65 degree beamwidth provides optimized coverage area with improved capability of propagating through dense foliage and obstructions. The KP-TWVP65S-12 features 12 dBi of gain and operates from 470 - 698 MHz.
Features
• 470 - 698 MHz single vertically polarized TVWS sector antenna
• 12 dBi gain, 65 degree beamwidth
• 1x Type N-Female connectors
• Heavy duty mounting brackets & small footprint
• Built-in GPS antenna (1x TNC connector)
• Direct mount for Redline Elipse radios
Specifications
Specifications KP-TWVP65S-12
| Frequency Range | 470 MHz to 698 MHz |
| Polarization Type | Vertical |
| Gain | 12 dBi |
| Vertical Beamwidth | 28° |
| Horizontal Beamwidth | 65° |
| Electrical Downtilt | 1° |
| F/B Ratio | 25 dB |
| VSWR | 1.3 |
| Cross Polar Ratio | 30 dB |
| Port Isolation | 30 dB |
| Connector Type | 1 x Type N Female |
| Built-in GPS Antenna | L1/BI RHCP 3dBiC |
| Antenna Dimensions | |
| Length | 1240 mm | 48.8 in |
| Width | 406 mm | 16 in |
| Height | 130 mm | 5.1 in |
| Net Weight, with brackets | 5.5 kg | 12.1 lb |
| Shipping Dimension, Weight | 50 in L x 21.3 in W x 5.1 in H 12.3 lbs |
