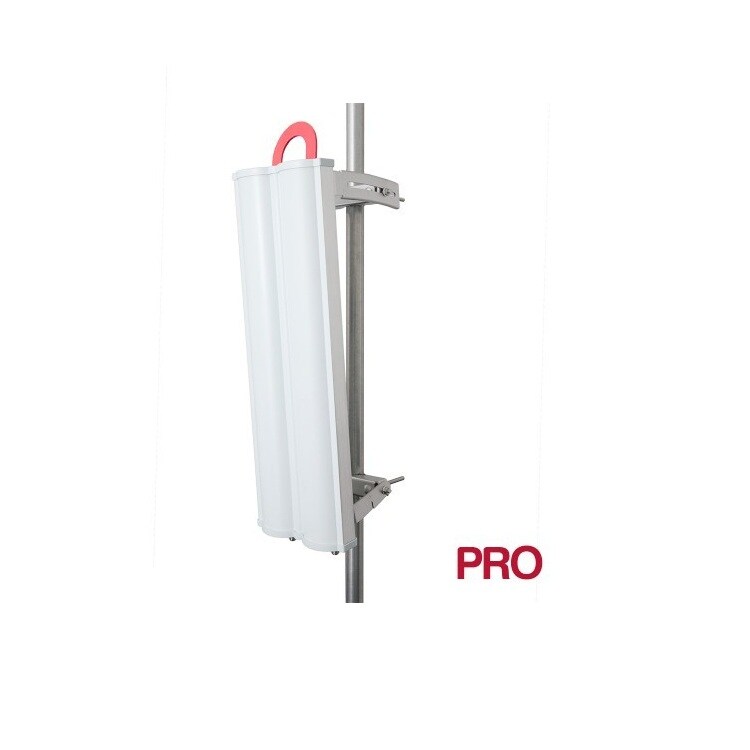

3.5 GHz to 4.2 GHz, 65 Degree + 4.9 GHz to 6.4 GHz, 90 Degree Dual Band Sector Antenna, 4-Port, ±45 Slant (Two Sectors in One Shell)
- SKU: KPP-3S65-5S90-X4
$722.97 $803.30
+ $154.64 Tariff
Product Information
3.5 GHz to 4.2 GHz, 65 Degree + 4.9 GHz to 6.4 GHz
Specifications
Specifications KPP-3S65-5S90-X4
| Frequency Range | 3.5 GHz to 4.2 GHz / 4.9 GHz to 6.4 GHz |
| Polarization Type | 45 Deg. Slant |
| Gain | 17.8 dBi / 17 dBi |
| Vertical Beamwidth | 6.5° / 6.5° |
| Horizontal Beamwidth | 65° / 90° |
| Electrical Downtilt | 3.5° / 0° |
| F/B Ratio | 35 dB / 35 dB |
| Connector Type | 4 x Type N Female |
| Dimension | 33 in L x 13 in W x 9 in H |
| Weight | 18 lbs |
