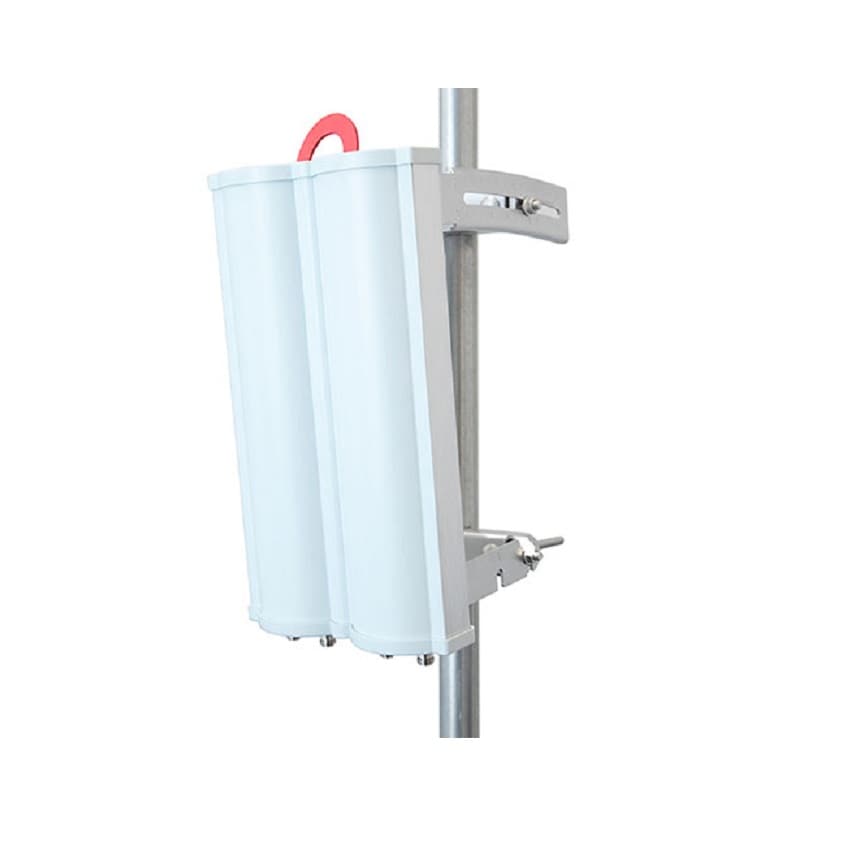

KP Performance Antennas 4.9 GHz to 6.4 GHz 65-Degree Sector Antenna
- SKU: KPP-5SX4-65
$392.59 $436.21
+ $83.97 Tariff
Product Information
17.5dBi, 4-Port, ±45 Slant
Specifications
Specifications KPP-5SX4-65
| Frequency Range | 4.9 GHz to 6.4 GHz |
| Polarization Type | 45 Deg. Slant |
| Gain | 17.5 dBi |
| Vertical Beamwidth | 7° |
| Horizontal Beamwidth | 65° |
| Electrical Downtilt | 0° |
| F/B Ratio | 38 dB |
| Connector Type | 4 x Type N Female |
| Dimension | 26 in L x 13 in W x 9 in H |
| Weight | 14 lbs |
