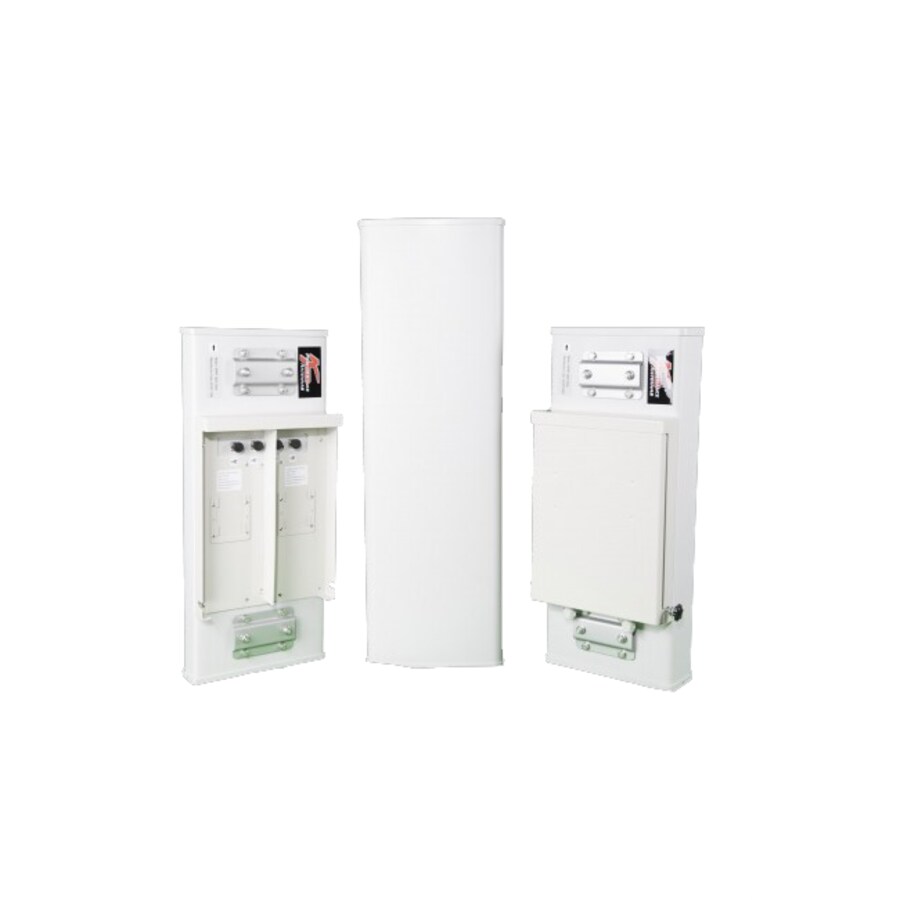

Two 3GHz ±45 antenna in one radome1pk
- SKU: KPPA-3S3S-65SA
$355.78 $374.50
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
Two 3GHz ±45 antenna in one radome1pk
Specifications
Specifications KP Performance KPPA-3S3S-65SA
| Frequency range | 3500-3700 |
| Polarization Type | ±45 |
| Gain | 16.5 dBi |
| Beamwidth H/V | 65° per port |
| Electrical Downtilt | > 1° |
| Cross Polar Ratio | > 21 dB |
| F/B Ratio | > 30 dB |
| V/H Port Isolation | > 18 dB same radio / > 30 dB other radio |
| Input Power | 50 W max per port |
| Return Loss | > 10 dB |
| VSWR | < 2:1 |
| Input Impedance | 50 Ω |
| Connector Type | Type N Female x 4 |
| Operating Temperature | -40° to +60° C / +140° F |
| Length | 27'' |
| Width | 11" |
| Height | 6.5'' |
| Rated Wind Velocity | 160 km/h / 100 mph |
| UV Protection | UV resistant powder coat |
| Ingress Protection | IP54 rain resistant |
| Weight | 14.5 lbs |
| Mounting Method | Carriage bolts |
| Surface Finish | Matte powder coat |
