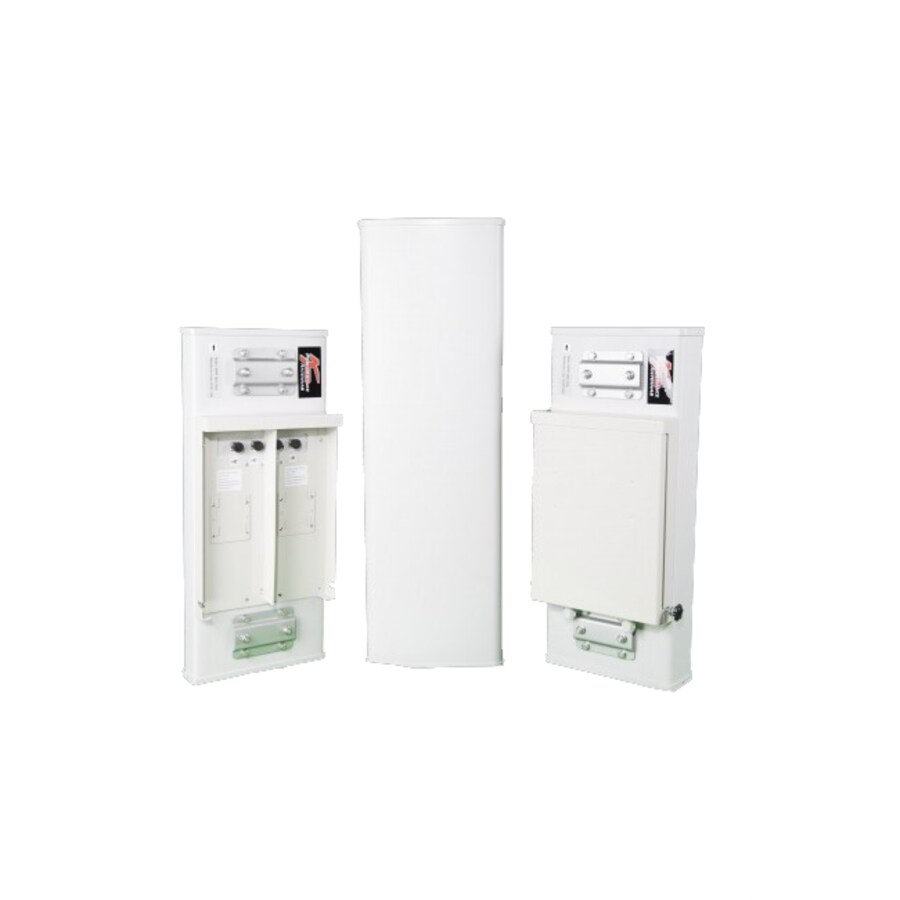

KP Performance Antennas 3 GHz, ± 45 Degree and 5 GHz H/V, 90 Degree Duel Sector Antenna
- SKU: KPPA-3S5HV-90SS
Product Information
ISP Supplies supplies the KP Performance Antennas 3 GHz, ± 45 degree and 5 GHz H/V, 90 degree duel sector antenna. The KP Performance KPPA-3S5HV-90SS is a high performance dual band sector antenna which combines high gain with a 90° beam-width. A 3 GHz, ± 45 antenna and a 5 GHz H/V antenna are integrated into a single enclosure with each internal antenna fed via its own individual connectors. Its dual band design makes it suitable for applications in the 3 GHz and 5 GHz band which eliminates the need to purchase different antennas for each frequency. This dual sector antenna comes with a rugged case for two Ubiquiti or Cambium ePMP radios and an adapter for external mounting up to two PMP radios. Pigtail cables not included.
The new generation of dual band sector antennas from KP combine two complete radiating systems within a single rugged radome. This arrangement allows complete coverage while reducing tower rental space and installation costs.
Specifications
Specifications KP Performance KPPA-3S5HV-90SS
| Frequency range | 3500-3700 / 5400-5900 MHz |
| Polarization Type | ±45 / Vertical and Horizontal |
| Gain | 15.9 dBi |
| Beamwidth H/V | 90° |
| Electrical Downtilt | < 1 ° |
| Cross Polar Ratio | 17 dB / > 30 dB |
| F/B Ratio | 28 dB |
| V/H Port Isolation | 19 dB 3GHz / > 24 dB 5GHz / > 27 dB between bands |
| Input Power | 50 W max per port |
| Return Loss | < 10 dB |
| VSWR | < 2:1 |
| Connector Type | Type N Female x 4 |
| Operating Temperature | -40° to +60° C / +140° F |
| Dimensions | 27.5" x 8.75" x 4.5" |
| Rated Wind Velocity | 160 km/h / 100 mph |
| UV Protection | UV resistant UPVC |
| Ingress Protection | IP55 rain resistant |
| Weight | 9.0 lb |
| Mounting Method | Carriage bolts |
| Surface Finish | Matte powder coat |
| Mounting pole dia | 1¼” – 3 ½” |
