Product Information

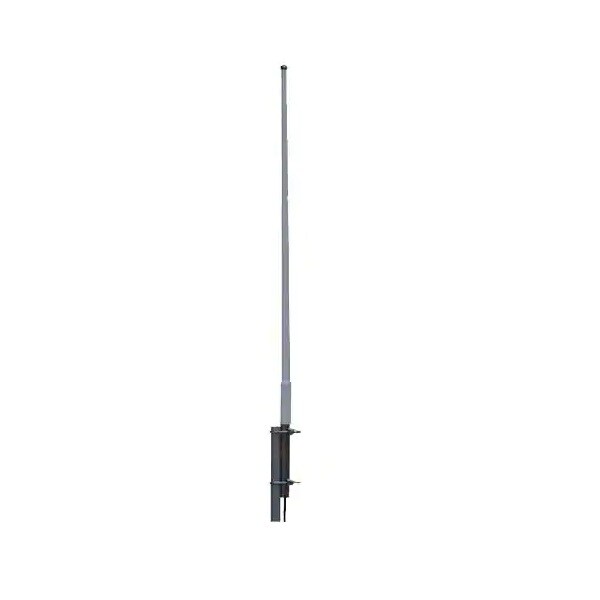

Laird Omni,VPOL,Fixed,NF
Specifications
Specifications OD9-5
| VSWR | 1.5:1 |
| Impedance | 50 ohm |
| Input power | 100W |
| Pole diameter (OD) | 1”- 2” (25-51mm) |
| Operating temperature | -45 - +70°C |
| Rated wind velocity | 125 mph (56 m/sec) |
| Gain | 5dBi |
| VSWR 1.5:1 bandwidth | 890-950 MHz |
| VSWR 2.0:1 bandwidth | |
| Vertical 3dB beamwidth | 36° |
| Electrical downtilt | 0 |
| Length | 24 in (610 mm) |
| Diameter | 1.5 in (38 mm) |
