LightSaber Optics LSO-1U-241500R2
- SKU: LSO-1U-241500R2
$506.15 $1,487.95
Product Information

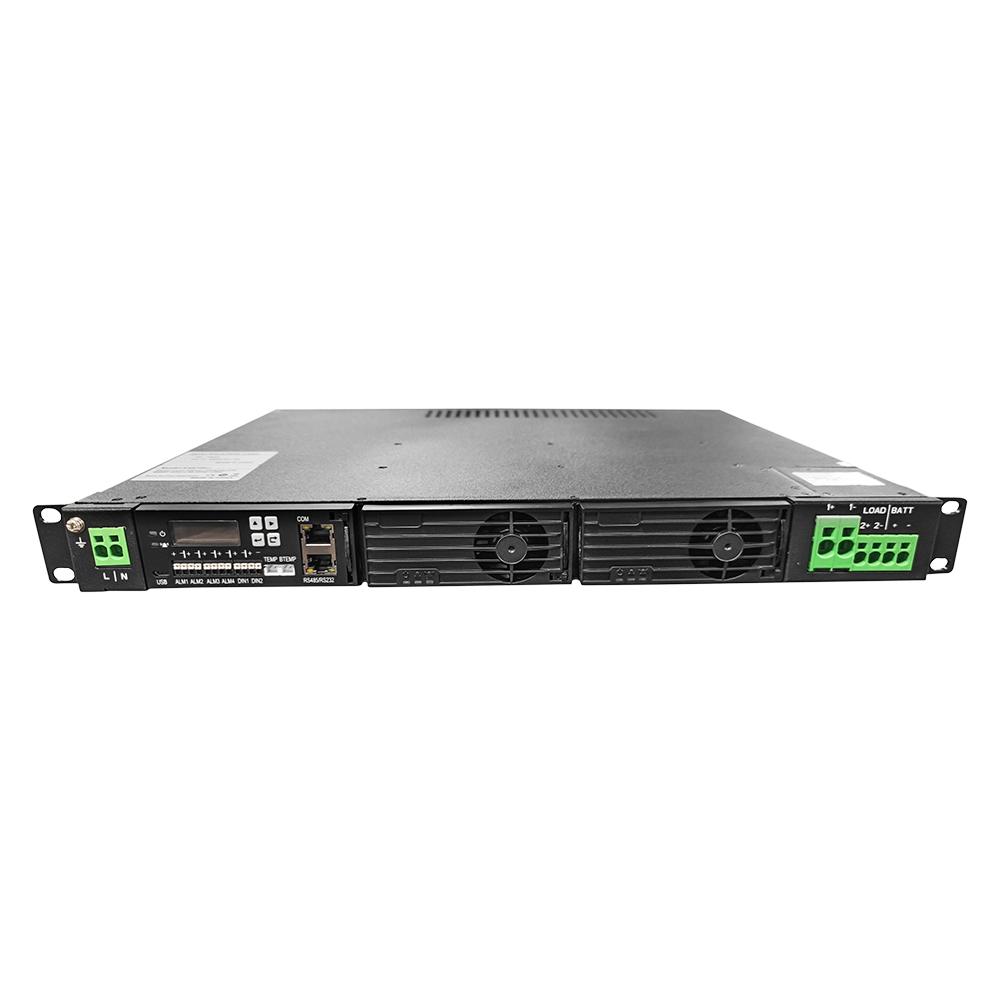

Lighsaber 1U System(1500W*2) Rectifier
Specifications
Specifications LSO-1U-241500R2
| System | |
| Dimension | 440mm(W)×354mm(D)×44mm(H) 17.32" W x 13.97" D x 1.73" H |
| Weight | ≤8.5kg (18.73 lbs) |
| Cooling mode | Natural cooling |
| Installation mode | Installed on 19-inch rack or inside the cabinet |
| Cabling mode | Front inlet and Front outlet |
| Maintenance mode | Front maintenance, support module grade change |
| Protection level | IP20 |
| AC Distribution | |
| Input mode | 220VAC single phase |
| Input capacity | 40A terminal |
| Output capacity | N/A |
| Input frequency | 45~66Hz, rated value: 50Hz/60Hz |
| SPD | 20kA/40kA, 8/20μs |
| DC Distribution | |
| Output voltage | -21~-29VDC, rated value: -26.7VDC |
| Maximum capacity | 3000W |
| Battery Fuse | 1×40A/ |
| Load Fuse | 1×80A; 1×40A; |
| SPD | N/A |
| Rectifier | |
| Input voltage | 85VAC～290VAC, rated 220VAC |
| Efficiency | R241500H＞94% Peak |
| Rated power | 1500W(110~270VAC) |
| Working temperature | R241500H -40°C~+80°C (full load @ 55°C) |
| Dimension | 106mm(W)×286mm(D)×42.5mm(H) |
| Weight | ≤1.9kg (4.18 lbs) |
| Cooling mode | Forced cooling |
| Power factor | ≥0.99 |
| THD | ≤5% |
| Controller | |
| Signal input | 1 Battery temp, 1 ambient temp & 2 common DI |
| Alarm output | 4 dry contact |
| Communication port | SNMP |
| Display mode | LCD |
| Environment | |
| Operating temperature | -40°C~+70°C |
| Storage temperature | -40°C~+70°C |
| Operating humidity | 5%~95% (non-condensing) |
| Altitude | 0~2000m |
