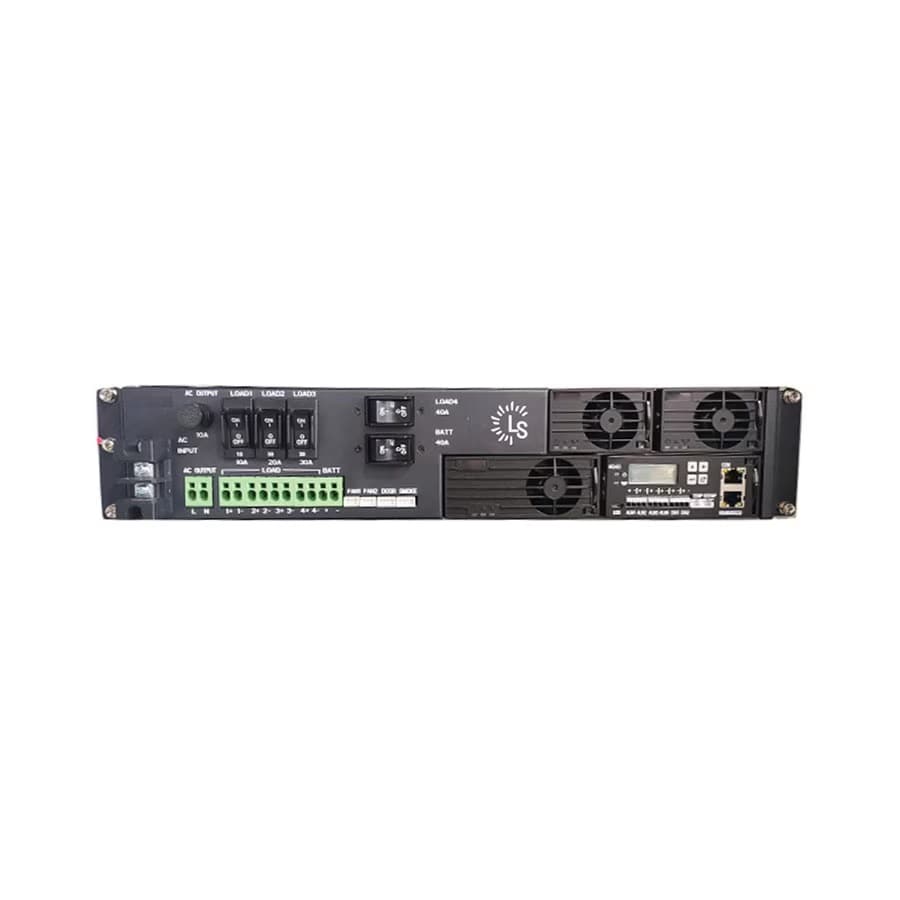

LightSaber Optics LSO-48100-L
- SKU: LSO-48100-L
$2,056.00
Product Information
LightSaber 2U system (3000W*2 Rectifier , 1000VA Inverter)
Specifications
Specifications LSO-48100-L
| System | |
| Dimension | 440mm(W)×354mm(D)×88mm(H) 17.32"x13.93"x3.46" |
| Weight | ≤13kg (28.66 lbs) |
| Cooling mode | Natural cooling |
| Installation mode | Installed on 19-inch rack or inside the cabinet |
| Cabling mode | Front inlet and Front outlet |
| Maintenance mode | Front maintenance, support module grade change |
| Protection level | IP20 |
| AC Distribution | |
| Input mode | 115VAC single phase,range:85V ~ 300VAC |
| Input capacity | 2P or terminal |
| Output capacity | 10A*1 |
| Input frequency | 45~66Hz, rated value: 50Hz/60Hz |
| SPD | 20kA/40kA, 8/20μs |
| DC Distribution | |
| Output voltage | -42~-58VDC, rated value: -53.5VDC |
| Maximum capacity | 100A |
| Battery breakers | 1×40A/1P |
| Load breakers | 1×40A,2×30A,1×10A |
| SPD | NA |
| Rectifier | |
| Input voltage | 85VAC～300VAC, rated 220VAC |
| Efficiency | R483000H1＞96% Peak |
| Rated power | 3000W(176~290VAC) |
| Working temperature | R483000H1 -40°C ~+85°C (full load @ 55°C) |
| Dimension | 106mm(W)×286mm(D)×42.5mm(H) |
| Weight | ≤1.9kg |
| Cooling mode | Forced cooling |
| Power factor | ≥0.99,（@230Vac，full load） |
| THD | ≤5%,（@230Vac，full load） |
| Inverter | |
| Input voltage | 44~ 60VDC; 40~ 44VDC (output power 900VA) |
| Efficiency | 0.91 |
| Rated power | 1000VA (44~ 60VDC;) 60Hz |
| Working temperature | -40°C~+60°C |
| Dimension | 106mm(W)×287mm(D)×42.5mm(H) |
| Weight | ≤1.7kg |
| Controller | |
| Signal input | 1 Battery temp., 1 ambient temp, 1 smoke, 1 gate, 2common DI |
| Communication port | 4 dry contact |
| Display mode | RS232/485, SNMP |
| Display mode | LCD |
| Environment | |
| Operating temperature | -40°C~+60°C |
| Storage temperature | -40°C~+70°C |
| Operating humidity | 5%~95%(non-condensing) |
| Altitudet | 0~2000m |
