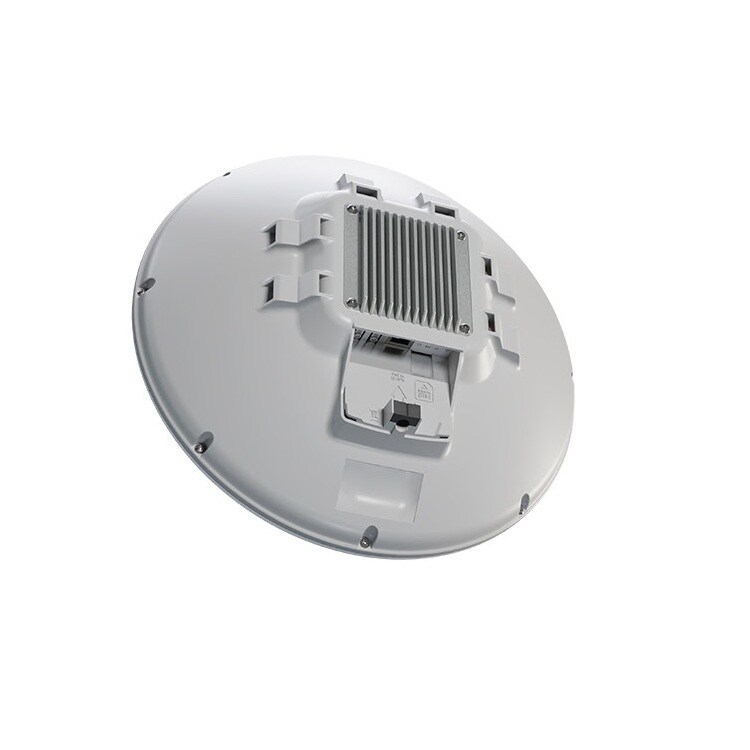

MikroTik ATL LTE18 Kit
- SKU: ATLGM&EG18-EA
$270.63 $279.00
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
ATL LTE18 kit with 1.2GHz dual-core ARM CPU, 256MB RAM, 1 x Gigabit Ethernet port with PoE-in for powering, 1.2 Gbps LTE CAT18 modem for International bands 1/3/5/7/8/20/28/38/40/41, 4 high-gain middle band (1.7-2.7GHz) and 2 high-gain low band antennas (700MHz-1GHz, LTE Band 28) 4x4 MIMO, MicroSIM slot, RouterOS L3, outdoor enclosure, PSU, PoE injector, pole mounting bracket
Specifications
Specifications ATLGM&EG18-EA
| CPU Dual-core | 88F3720 1.2 GHz |
| CPU architecture | ARM 64bit |
| Size of RAM | 256 MB |
| RAM type | DDR3L |
| Storage | 16 MB, Flash |
| Number of 1G Ethernet ports | 1 |
| LTE modem | R11mL-EG18-EA |
| TAC | 86981604 |
| LTE Category | 18 (1.2Gbps Downlink, 150Mbps Uplink) |
| LTE bands | 1 (2100MHz)/3 (1800MHz)/5 (850MHz)/7 (2600MHz)/8 (900 MHz)/20 (800MHz)/28 (700MHz)/38 (2600MHz) /40 (2300MHz) /41 (2500MHz) |
| 3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G Bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| Dimensions | 315 mm diameter x 170 mm depth |
| Operating system | RouterOS, License level 3 |
| Operating temparature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 1 |
| DC input type | PoE-in (12-57) |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 0.8 A |
| Max power consumption without attachments | 8 W |
| Max power consumption | 8 W |
