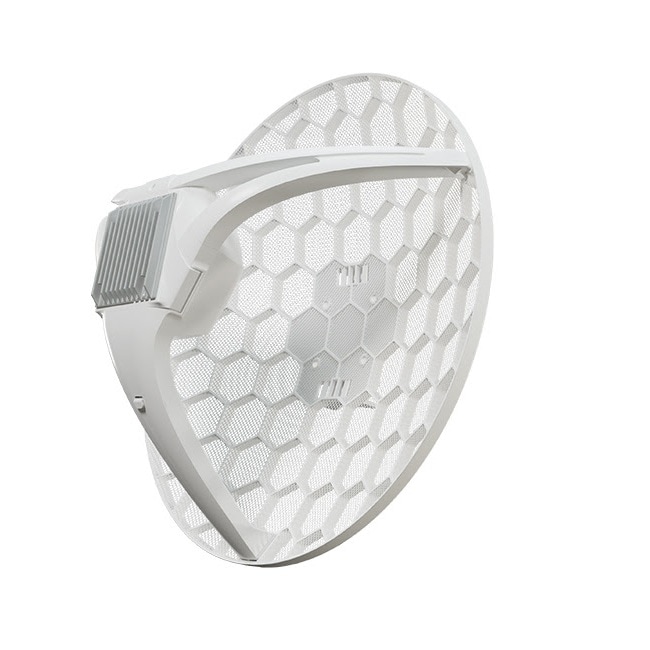

MikroTik LHG LTE18 Kit 17dbi 8W 800MHz CPU
- SKU: LHGGM&EG18-EA
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
Introducing the MikroTik LHG LTE18 kit, your ultimate last-mile internet solution, even in the most remote areas where signal is scarce. This cutting-edge kit features a Category 18 LTE modem for blazing-fast mobile internet speeds up to 1Gbps.
The LHG LTE18 kit boasts a large high-gain 17dBi antenna, ensuring connectivity to cell towers in extreme rural locations where other options fail.
With a robust heat sink to prevent overheating and a grid antenna design for resilience in harsh weather conditions, the LHG LTE18 kit offers versatile mounting options on poles and masts.
Equipped with a 1.2Gbps CAT18 LTE modem supporting carrier aggregation, this device optimizes performance by utilizing multiple LTE bands simultaneously. This feature enhances responsiveness and efficiency, particularly in crowded and low-signal rural environments.
The high-gain antenna supports LTE bands up to 2.7GHz and offers comprehensive coverage across various frequencies. The LHG LTE18 kit includes a Gigabit Ethernet port with PoE-in for power, complete with an injector. It features a standard MicroSIM slot for LTE connectivity and is powered by a robust 64-bit dual-core ARM CPU.
Product Features
- Large High-Gain 17dbi Antenna
- Supports Speeds up to 1Gbps
- Gigabit Ethernet Port with PoE-in
- 64 Bit Dual-Core ARM CPU
- CAT18 LTE Modem
- Grid Antenna Design for Harsh Weather
- 24v 0.8A Power Adapter (U.S. Plug)
- K-LHG Fastening Set
- PoE Injector
- 2x hose clamps
Specifications
Specifications
| CPU | 88F3720 800 MHz |
| CPU architecture | ARM 64bit |
| Size of RAM | 256 MB |
| Storage | 16 MB flash |
| Number of 1G Ethernet ports | 1 |
| LTE modem | R11mL-EG18-EA |
| TAC | 86981604 |
| LTE category | 18 (1.2Gbps Downlink, 150Mbps Uplink) |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20(800MHz) / 28 (700MHz) / 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| 3G category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| Micro SIM slot | 1 |
| Dimensions | 391 x 391 x 227 mm 15.39 x 15.39 x 8.93 inch |
| Operating system | RouterOS v7, License level 3 |
| Operating temperature | -40°C to +70°C |
| Powering | |
| PoE in | 802.3af/at |
| Supported input Voltage | 12-57 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 0.8 A |
| Max power consumption | 8 W |
