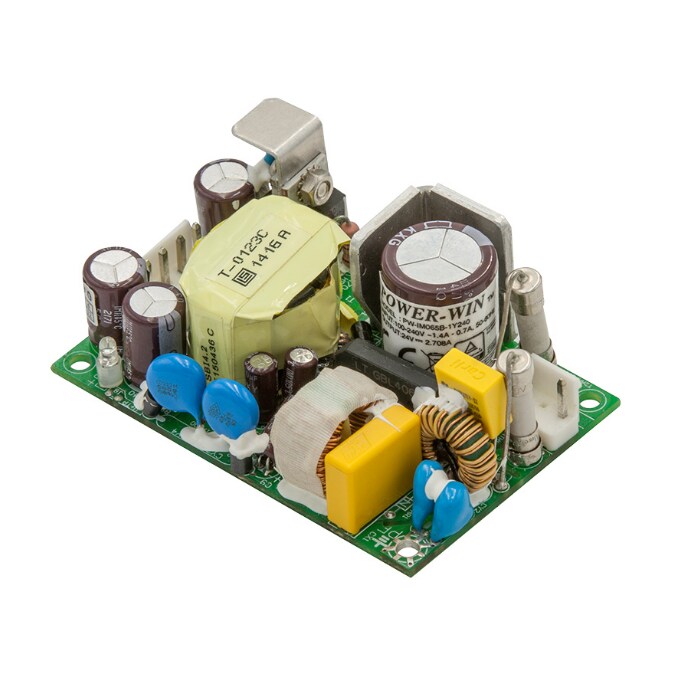

MikroRouter PW-IM065B-1Y240
- SKU: PW-IM065B-1Y240
$45.00
- Manufacturer: MikroRouter
- Data Sheet: Download
Product Information
40W-65W Medical Power Supply Open Frame
Specifications
Specifications
| Dimension | L76.2 × W50.8 × H28.7 mm ( 3" × 2" × 1.13" ) |
| Weight | 0.12 kgs. ( 0.26 lbs. ) |
| Input range | 90 - 264VAC |
| Frequency | 47 - 63Hz |
| Inrush current | < 65A peak @115VAC; < 130A peak @230VAC cold start @25°C |
| Input current (rms) | 1A @115VAC; .0.6A @230VAC max. |
| Efficiency | >87% typical @full load, 115VAC(Except +5V mode ,85% typical @full loadl) |
| Maximum output power (Po) | 65 Watts convection cooling((Except +5V mode ,40 Watts ) |
| Hold-up time | >10ms typical @ load 75% , 115VAC |
| Short circuit protection | Auto-recovery |
| Over load protection | 105% to 170% maximum rating, Auto-recovery |
| Over voltage protection | Shutdown and latch off, AC recycle |
| Environmental | |
| Operating temperature | -20 to +70°C (Derate linearly 2.5% per °C from 41 to 70°C) |
| Storage temperature | -20°C to +85°C |
| Humidity | Non-condensing 0% to 90% |
| MTBF | >100,000 hours @full load and 25°C ambient temperature |
| SAFETY STANDARDS | |
| Medical |
|
| EMI STANDARDS | |
| Medical |
|
| DC OUTPUT & FEATURES | |
| Other DC output | 40W for 5V, 65W for 12-56.9V. |
