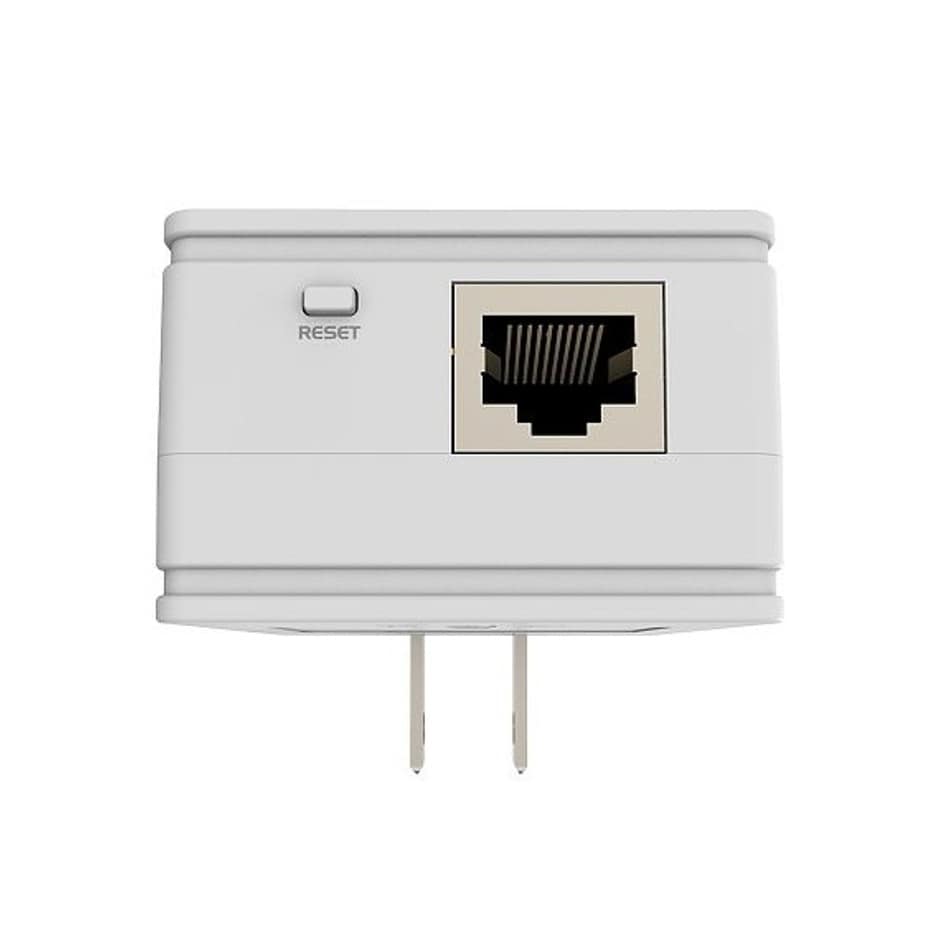

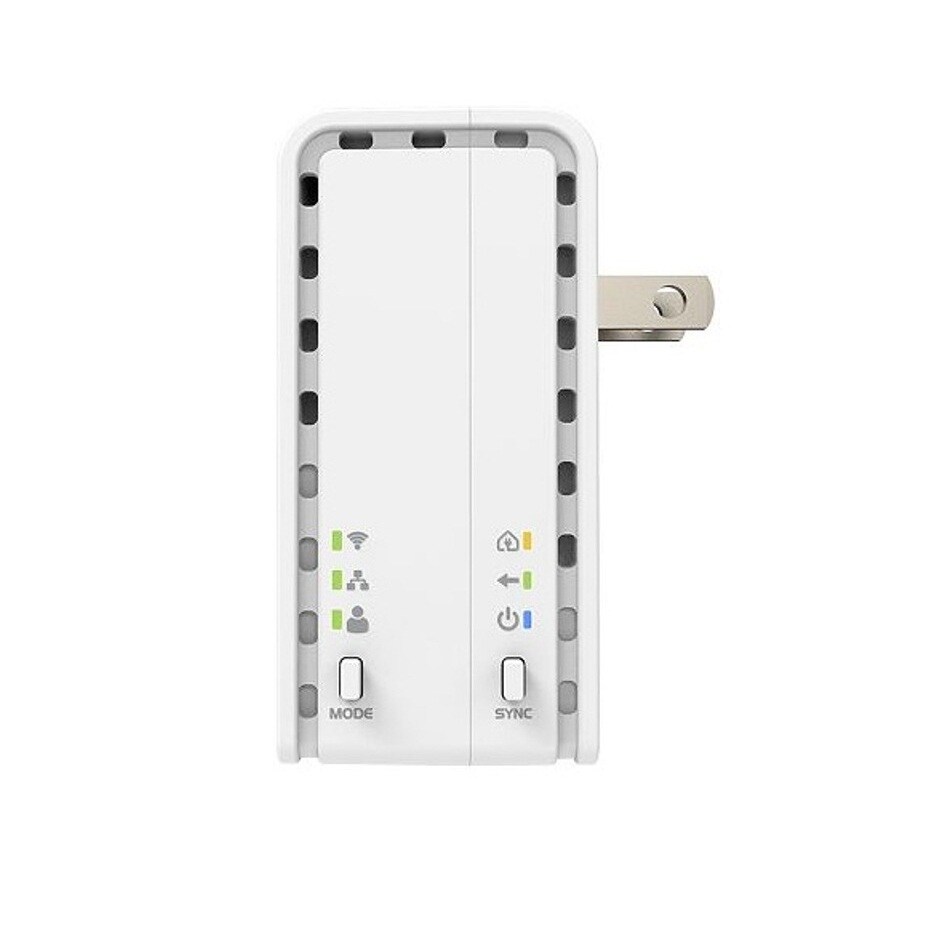

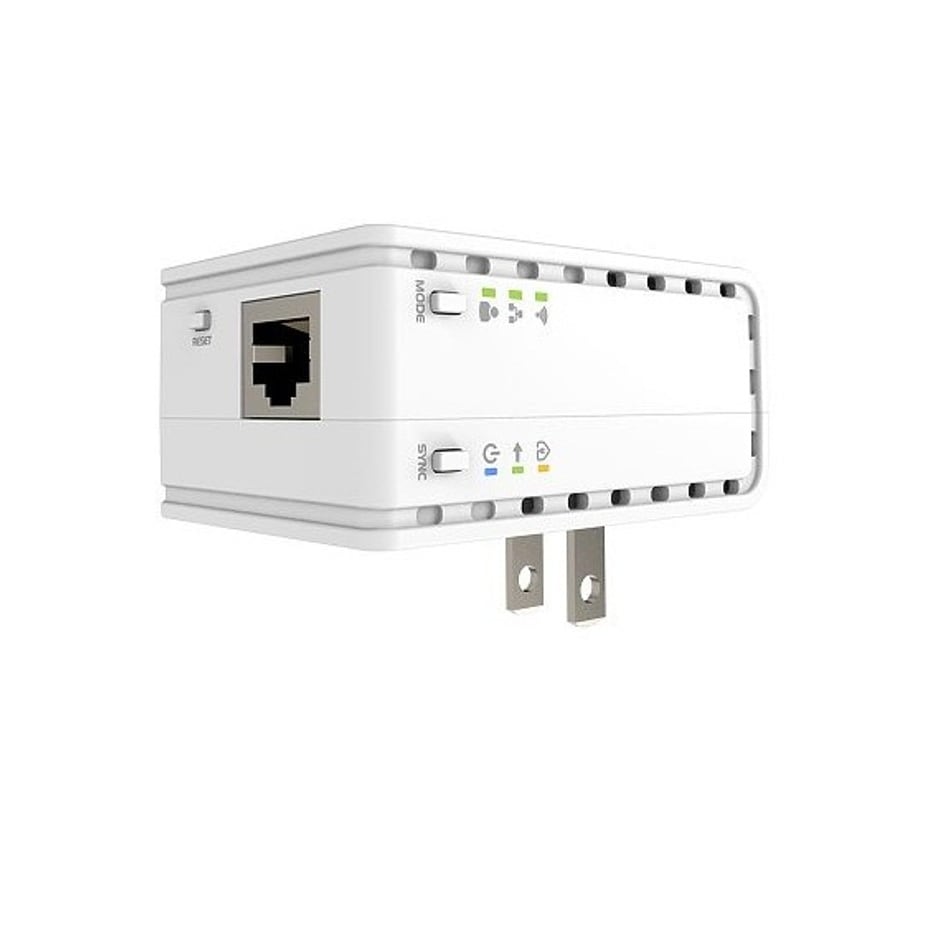

MikroTik PWR-Line 2.4GHz Powerline Access Point (US Plug)
- SKU: PL6411-2nD
$47.53 $49.00
Product Information
ISP Supplies supplies the MikroTik PWR-Line AP, a small Wi-Fi access point, made as an accessory to your existing network, for places where your signal or your cable is unable to reach. Unit comes with Type A power plug (commonly used in USA, Canada, Mexico & Thailand).
Especially useful in homes with thick walls, where you can extend Wi-Fi coverage to those rooms, where signal is poor, without having to re-wire your house.
Simply plug this device directly into one of the LAN ports of your MikroTik router, and add another one somewhere further in your premises. They will link together through the power lines. You can install up to eight PWR-LINE devices to further build your network.
Specifications
Specifications PL6411-2nD
| CPU | QCA9533 |
| CPU nominal frequency | 650 MHz |
| PLC chipset | QCA6410 |
| Size of RAM | 64 MB |
| Memory | 16 MB Flash |
| 10/100 Ethernet ports | 1 |
| Wireless | Built-in 2.4 GHz 802.11b/g/n, dual-chain |
| Wireless regulations | Specific frequency range may be limited by country regulations |
| Antenna gain | 1.5 dBi |
| Antenna beam width | 360° |
| Wireless chip model | QCA9533 |
| Supported input voltage | 100 V - 240 V |
| Dimensions | 50 x 68 x 33mm |
| Operating temperature | -20°C .. +60°C |
| License level | 4 |
| Operating system | RouterOS |
| Max power consumption | 7 W |
| Power plug type | Type A (commonly used in USA, Canada, Mexico, Thailand) |
| Wireless specifications | ||
| RATE | Tx (dBm) | Rx (dBm) |
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
