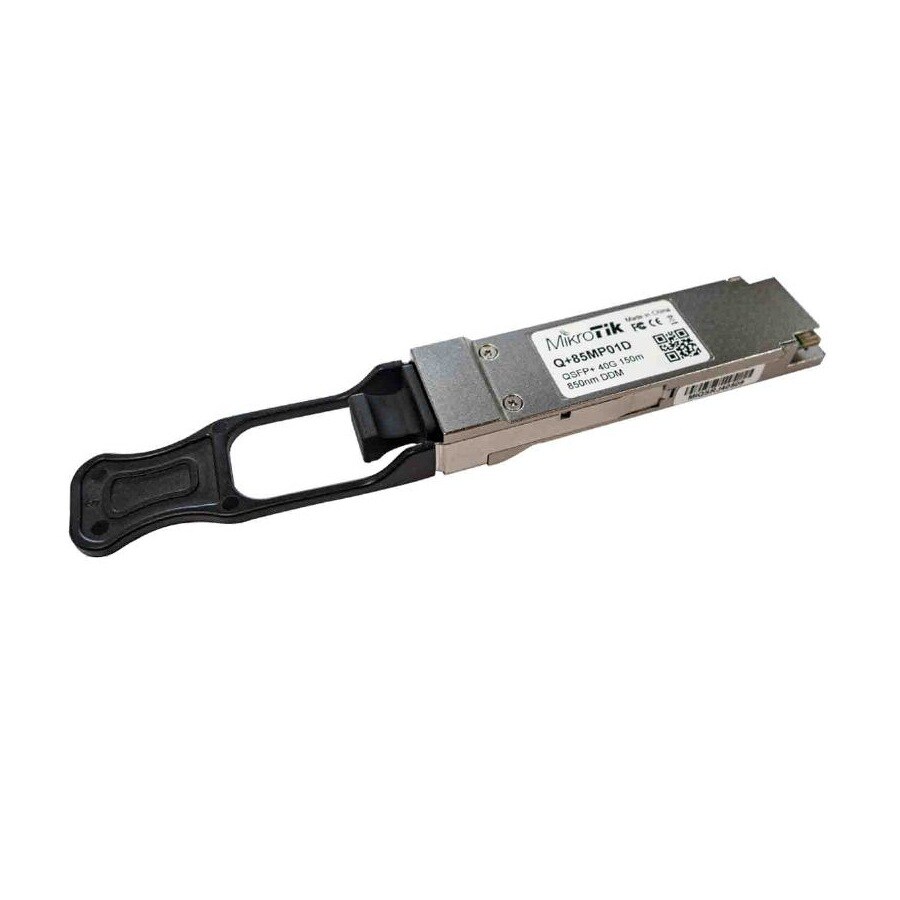

MikroTik Optical QSFP+ Module
- SKU: Q+85MP01D
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
ISP Supplies supplies the MikroTik 40 Gbps 850nm optical QSFP+ module. This is an optical module with MTP/MPO connector for 12-fiber array that requires Female-Female Type-B polarity MTP/MPO optical cable, which offers 4 independent full-duplex channels with up to 10 Gbps per channel bandwidth and aggregate bandwidth of 40 Gbps.
It can provide a connection over 100 m on OM3 Multimode Fiber (MMF) and 150 m on OM4 MMF. The module has built-in digital diagnostic functions, including optical power monitoring, and will perform well in environments up to 70° C.
It has been designed to meet the harshest conditions, including temperature, humidity and EMI interference, so we definitely recommend this as a reliable solution for all your 40 Gbps QSFP+ devices.
Specifications
Specifications Q+85MP01D
| Module type | QSFP + |
| Wavelength | 850nm |
| Port reach | 100m for OM3 Multimode Fiber (MMF) 150m for OM4 Multimode Fiber (MMF) |
| DDM (Digital Diagnostic Monitoring) | YES |
| Connector | MPO |
| Transmitting power (Tx) | Minimum: -7,6 dBm Maximum: 2,4 dBm |
| Reception sensitivity (Rx) | Minimum: -9,9 dBm Maximum: 2,4 dBm |
| LOS de-assert | -12 dBm |
| LOS assert | -30 dBm |
