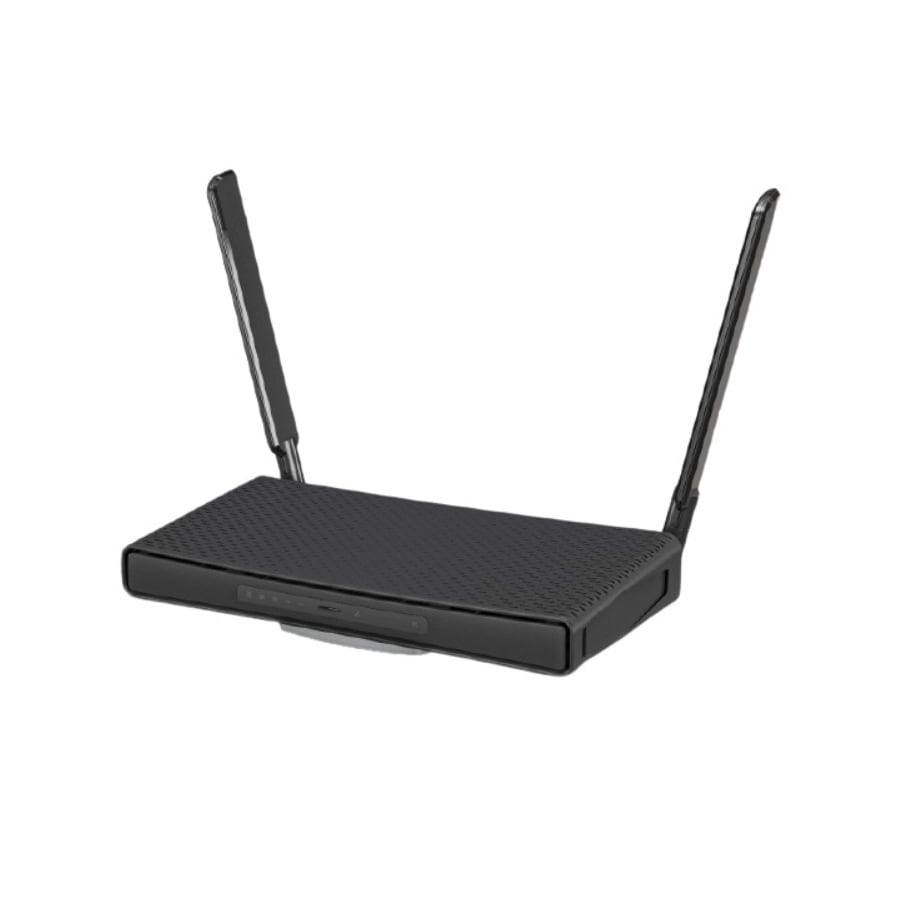

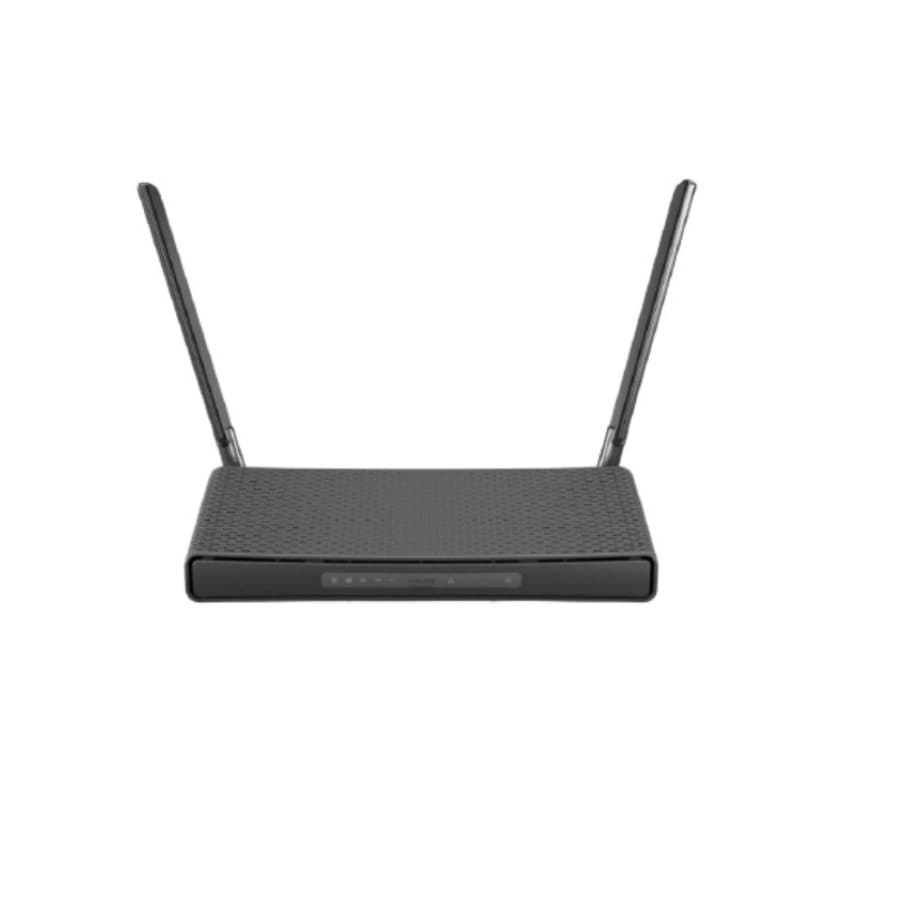

MikroTik hAP ac3 Home Access Point
- SKU: RBD53iG-5HacD2HnD
$105.73 $109.00
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
hAP ac³ with 4-core 716 MHz CPU, 256MB RAM, 5 x Gigabit LAN (PoE-out on port#5), two wireless interfaces (built-in 2.4Ghz 802.11b/g/n two chain, built-in 5Ghz 802.11ac two chain), 3dBi 2.4GHz external antenna, 5.5dBi 5GHz external antenna, tower/desktop case, USB, PSU, RouterOS L4
Specifications
Specifications RBD53iG-5HacD2HnD
| CPU | 4 core IPQ-4019 716 MHz |
| Number of 1GbE ports | 5 |
| Number of 1GbE ports with PoE-out | 1 |
| Size of RAM | 256 MB |
| Size of NAND | 128 MB |
| Wireless | 2.4 GHz 802.11 b/g/n dual-chain, 5 GHz 802.11 a/n/ac dual-chain |
| Wireless regulations | Specific frequency range and power will be limited by country regulations |
| Wireless antenna max gain | 2.4 GHz (3 dBi), 5 GHz (5.5 dBi) |
| Antenna beam width | 360° |
| Dimensions | 251 x 129 x 39 mm |
| Operating system | RouterOS, License level 4 |
| USB port | 1 USB port type A |
| Operating temparature | -40°C to +70°C |
| Powering | |
| PoE-in | Passive PoE |
| PoE-out * | Passive PoE |
| Supported input voltage | DC jack (12 - 28 V) PoE-in (18-28 V) |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.5 A |
| Max out per port output (input < 30 V) | 0.5 A |
| Max power consumption without attachments | 12 W |
| Max power consumption | 30 W |
| Certification & Approvals | |
| Certification | CE, FCC, IC |
| Wireless Spec | ||
| Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
| 1Mbit/s | 25 | -100 |
| 11Mbit/s | 25 | -94 |
| 6Mbit/s | 26 | -96 |
| 54Mbit/s | 23 | -78 |
| MCS0 | 26 | -96 |
| MCS7 | 22 | -73 |
| Rate (5 GHz) | Tx (dBm) | Rx (dBm) |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 22 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 21 | -75 |
| MCS9 | 19 | -70 |
