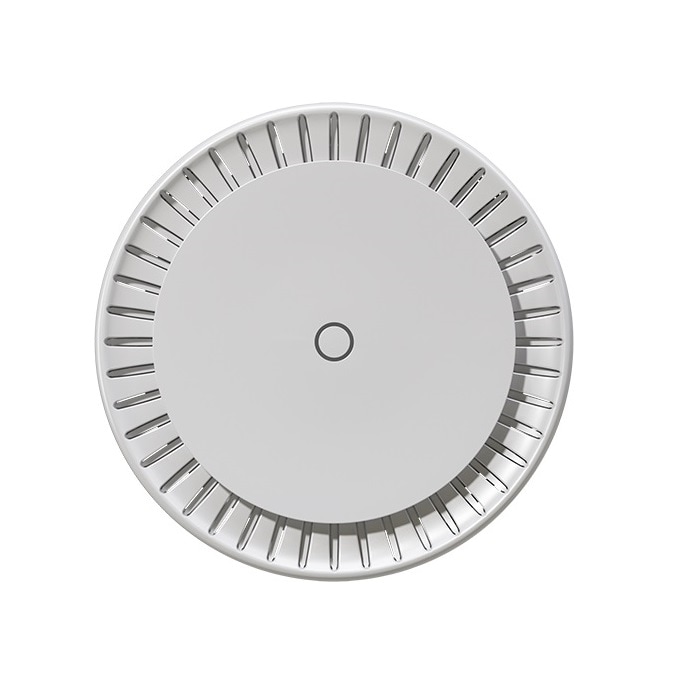

cAP ax with Quad core IPQ-6010 1.8 GHz CPU, 1GB RAM, 2 x Gbit LAN (one with PoE-out), built-in 2.4 GHz 802.11b/g/n/ax dual-chain wireless, built-in 5 GHz 802.11a/n/ac/ax dual-chain wireless with high-gain antenna, RouterOS L4, plastic enclosure, ceiling mount, PSU, PoE injector
- SKU: cAPGi-5HaxD2HaxD
$125.13 $129.00
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
cAP ax with Quad core IPQ-6010 1.8 GHz CPU, 1GB RAM, 2 x Gbit LAN (one with PoE-out), built-in 2.4 GHz 802.11b/g/n/ax dual-chain wireless, built-in 5 GHz 802.11a/n/ac/ax dual-chain wireless with high-gain antenna, RouterOS L4, plastic enclosure, ceiling mount, PSU, PoE injector. International Version
Specifications
Specifications cAPGi-5HaxD2HaxD
| CPU | Quad core IPQ-6010 1.8 GHz |
| Size of RAM | 1 GB |
| RAM type | DDR3L |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 2 |
| Wireless interface model | QCN-5022 (2.4 GHz), QCN-5052 (5 GHz) |
| Wireless | 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain |
| Antenna gain | 5.5 dBi |
| Operating system | RouterOS v7, License level 4 |
| Switch chip model | IPQ-6010 |
| Dimensions | 228 x 48 mm 8.97 x 1.88 inch |
| Operating temperature | -40°C to +70°C tested |
| PoE-in | 802.3af/at |
| PoE-Out | Passive PoE up to 57V (<30v DC jack must be used, >30V PoE-In and DC jack can be used) |
| PoE-Out ports | Ether2, max out per port output (input < 30 V): 600 mA, max out per port output (input > 30 V): 400 mA. Over 300 mA current, please use DC jack for powering device. |
| Number of DC inputs | 2 |
| Supported input voltage | 18-57 V (DC jack) 18-57 (PoE-In) |
| Max power consumption (without attachments) | 9 W |
| Max power consumption | 28,2 W |
