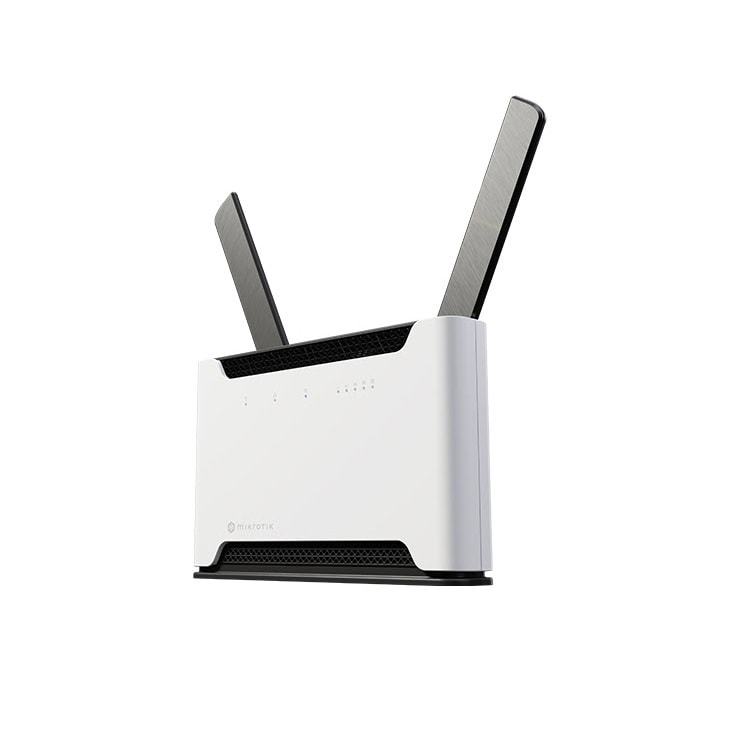

Chateau LTE18 ax CAT18 LTE Home Access Point
- SKU: S53UG+5HaxD2HaxD-TC&EG18-EA
$290.03 $299.00
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
Chateau LTE18 ax kit with Quad-Core IPQ-6010 1.8 GHz CPU, 1GB RAM, 1 x 2.5 Gigabit LAN, 4 x Gigabit LAN, two wireless interfaces (built-in 2.4Ghz 802.11ax two chain wireless, built-in 5Ghz 802.11ax two chain wireless) with external antennas, LTE CAT18 modem for International bands 1/3/5/7/8/20/28/38/40/41 with integrated antennas, SMA connectors for external antennas, tower case, USB, 1.5m RJ45 cable, PSU, RouterOS L4
Specifications
Specifications S53UG+5HaxD2HaxD-TC&EG18-EA
| CPU Quad-Core | IPQ-6010 1.8 GHz |
| CPU architecture | ARM 64bit |
| Size of RAM | 1 GB |
| RAM type | DDR3L |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 4 |
| Number of 2.5G Ethernet ports | 1 |
| Micro SIM slots | 1 |
| USB | 1 USB 3.0 type A |
| Switch chip model | IPQ-6010 |
| Wireless interface model | QCN-5022 (2.4 GHz), QCN-5052 (5 GHz) |
| Wireless | 2.4 GHz 802.11ax dual-chain, 5 GHz 802.11ax dual-chain |
| Wireless antenna max gain | 2.4 GHz (3 dBi), 5 GHz (6 dBi) |
| LTE category | 18 (1.2Gbps Downlink, 150Mbps Uplink) |
| LTE modem | EG18-EA |
| TAC | 86981604 |
| LTE antenna gain | 4 dBi |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| 3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G Bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| Dimensions | 240 x 156 x 44 mm 9.44" x 6.14" x 1.73" |
| Operating system | RouterOS v7, License level 4 |
| Operating temparature | -40°C to +65°C |
| Powering | |
| Number of DC inputs | 1 |
| DC jack input Voltage | 12-28 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
| Max power consumption without attachments | 16 W |
| Max power consumption | 19 W |
| Wireless specifications | ||
| Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
| 1MBit/s | 20 | -100 |
| 11MBit/s | 20 | -94 |
| 6MBit/s | 21 | -96 |
| 54MBit/s | 18 | -80 |
| MCS0 | 21 | -96 |
| MCS7 | 17 | -75 |
| MCS9 | 16 | -70 |
| MCS11 | 14 | -67 |
| Rate (5 GHz) | Tx (dBm) | Rx (dBm) |
| 6MBit/s | 21 | -96 |
| 54MBit/s | 18 | -80 |
| MCS0 | 21 | -96 |
| MCS7 | 17 | -75 |
| MCS9 | 16 | -70 |
| MCS11 | 14 | -67 |
