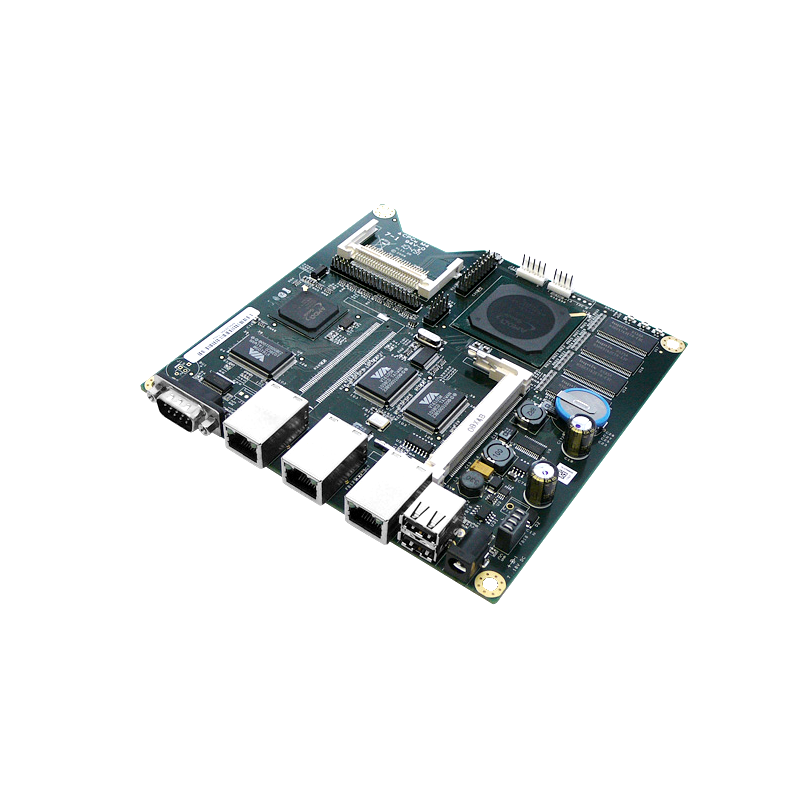

PC Engines ALIX2D13
- SKU: ALIX2D13
$49.32 $117.00
- Manufacturer: PC Engines
Product Information
PC Engines ALIX 256MB 3LAN /1mPCI/USB +RTC Battery
Specifications
Specifications ALIX2D13
| Processor (CPU) | 500 MHz AMD Geode LX800 |
| DRAM | 256 MB DDR DRAM |
| Storage | CompactFlash socket, 44 pin IDE header |
| Power | DC jack or passive POE, min. 7V to max. 20V |
| Expansion | 1 miniPCI slot, LPC bus |
| Connectivity | 3 Ethernet channels (Via VT6105M 10/100) |
| Ethernet Ports | 3 Ethernet channels (Via VT6105M 10/100) |
| I/O | DB9 serial port, dual USB port |
| Board size | 6 x 6" (152.4 x 152.4 mm) - same as WRAP.1E |
| Monitoring | Three front panel LEDs, pushbutton |
| Display Port | None |
| Firmware | tinyBIOS |
