PPC Broadband QP13PBB92B5S5050F
- SKU: QP13PBB92B5S5050F
$38.83
- Manufacturer: PPC Broadband
- Data Sheet: Download
Product Information

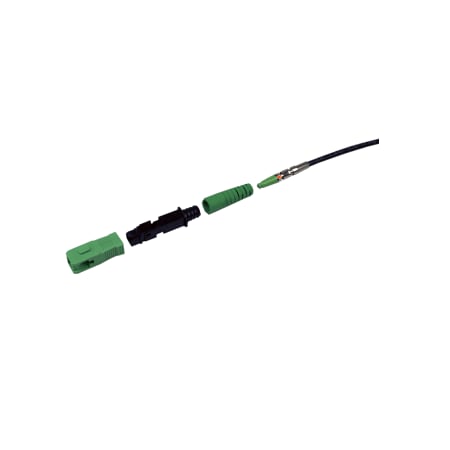

QuikPush Cable Assembly, 1F, 900um G657A2, 3mm, BLK, Balistix SC/APC to Standard SC/APC, 50FT
Specifications
Specifications QP13PBB92B5S5050F
| Weight | 0.35 lbs |
| Dimensions (HxWxL) | 12" x 12" x 0.5" D |
| Specification | G657 A2 |
| Attenuation (850 / 1300 nm) | n/a |
| Attenuation (1310 / 1550 nm) | 0.4/0.3 dB/km |
| Attenuation at 1383nm | n/a |
| Attenuation at 1625 nm | < 0.24 dB/km |
| Refractive Index at 1310nm, 1550nm | 1.467, 1.468 |
| Refractive Index at 850nm, 1300nm | n/a |
| Proof test | 0.69 GPa (100 kpsi), 1% min. |
| Cladding diameter | 125 ± 0.7 μm |
| Coated diameter | 235μm to 245μm |
| Core/Cladding concentricity error | ≤ 0.5 μm |
| Coating concentricity error | ≤ 12μm |
| Macro bend loss | (1550 nm) |
| 10 turns at 50mm diameter | n/a |
| 10 turns at 15 mm diameter | ≤ 0.03 dB |
| 1 turn at 10mm diameter | ≤ 0.10 dB |
| 1 turn at 7.5mm diameter | ≤ 0.50 dB |
