Product Information

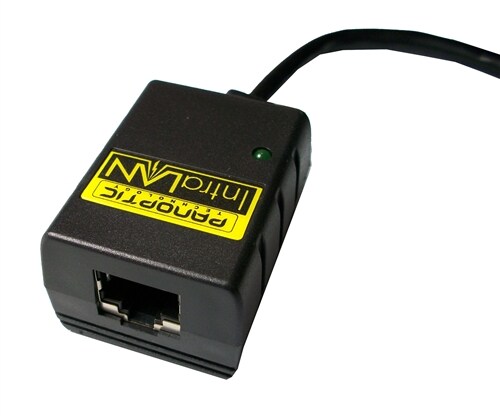

Panoptic Smart Adapter 48V to 12V PoE
Specifications
Specifications PE-IPAF4512-PAN
Technology
| Input Voltage | 36V to 57V DC |
| Input Current | 400mA maximum continuous as per IEEE 802.3af |
| PD Detection | Presents IEEE802.3af PD signature and Class 0 classification to PSE on any one pair |

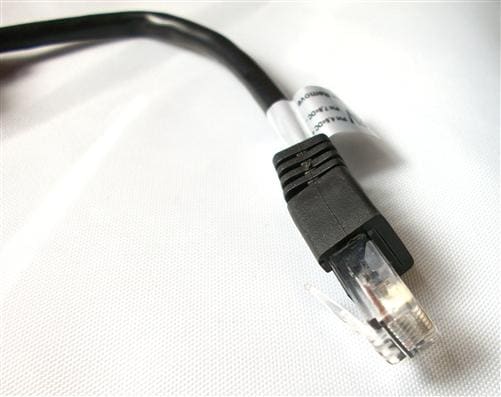

| Ports | RJ45 shielded connector for PoE Input |
| Output | (±3%) Can be 5V, 7.5V, 9V, 12V, 18V or 24V |
| Output Current (RMS) | Can be 2A, 1.7A, 1.4A, 1A, 0.7A or 0.5A |
| Output Power | 12 Watts maximum continuous. 12.94 Watts maximum.. Maximum output power is determined by the input (voltage and current). Current IEEE 802.3af standard permits 12.94 Watts output. |
| Regulation (typical) | ± 3% |
| Ripple | < 100mV p-p (at DC Jack) |
| End to end | ≈ 85% (at 24W load at 48V input) |
| Ports | RJ45 shielded connector for Data Out. Centre positive barrel 5.5mm x 2.1mm for DC Out |
| LED | PoE detection and classification |
Environmental
| Operation | 0 to 50°C (32 to 122°F) |
| Storage | -20 to 65°C (-4 to 149°F) |
| Humidity | 5% to 85% RH |
| Dimension | 1.65 in x 1.26 in x 0.94 in (42 x 32 x 24 mm) |
| Weight | 1.4 oz (40g) |
