Perfect Vision CB4B06DSCR0-05
- SKU: CB4B06DSCR0-05
$126.85
- Manufacturer: Perfect Vision
- Data Sheet: Download
Product Information

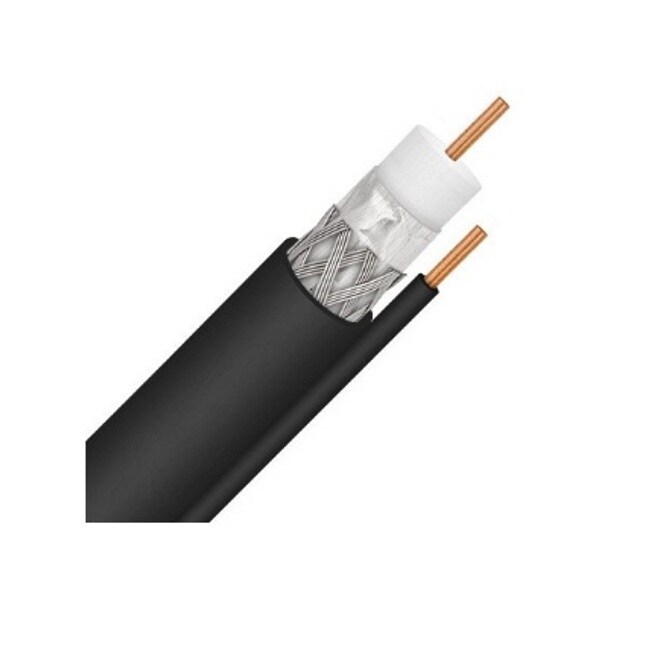

Coax RG6 Solid Copper, Single, CCS Ground-1000 Ft DTV Black
Specifications
Specifications CB4B06DSCR0-05
| Coax Type | RG6 with Ground |
| Packaging | RIB |
| Shipping Weight | 20.0 kg G.W. 44 lb |
| Applications | Indoor and Outdoor Use |
| Operating Temperature | -40° C through +75 C |
| Materials | |
| (a) Jacket | Nominal OD: 6.86 ± 0.15mm |
| Material | PVC |
| Color | Black, White |
| (b) Braids | Material: Aluminum Magnesium Alloy |
| Braid Wire Count | 80 |
| Braid Coverage | 60% |
| (c) Foil Shield | Material: Aluminum Foil |
| Adhesive | EAA |
| Foil Shield Coverage | 100% (18% overlap minimum) |
| (d) Dielectric | Material: Gas Injected Foam PE |
| Nominal OD | 4.57mm ± 0.10mm |
| (e) Conductor | Material: Solid Copper |
| Nominal OD | 1.02mm ± 0.01mm (18 ga) |
| (f) Ground | Material: Copper-Clad Steel |
| Nominal OD | 1.15 ± 0.01 mm (17 ga) |
| Electrical | |
| Impedance | 75 Ohms ± 3 Ohms |
| Capacitance | 16.2 PF/ft ± 1.0 PF/ft |
| Velocity of Propagation | 83% |
| Nominal Delay | 1.22 NS/ft |
| Conductor DC Resistance | 22 Ohms / Km |
| Shield DC Resistance | 43 Ohms / Km |
| Swept Tested | 5 MHZ~3000 MHz |
| UL | CATV / CM |
| Footage markers | Every 2 ft |
