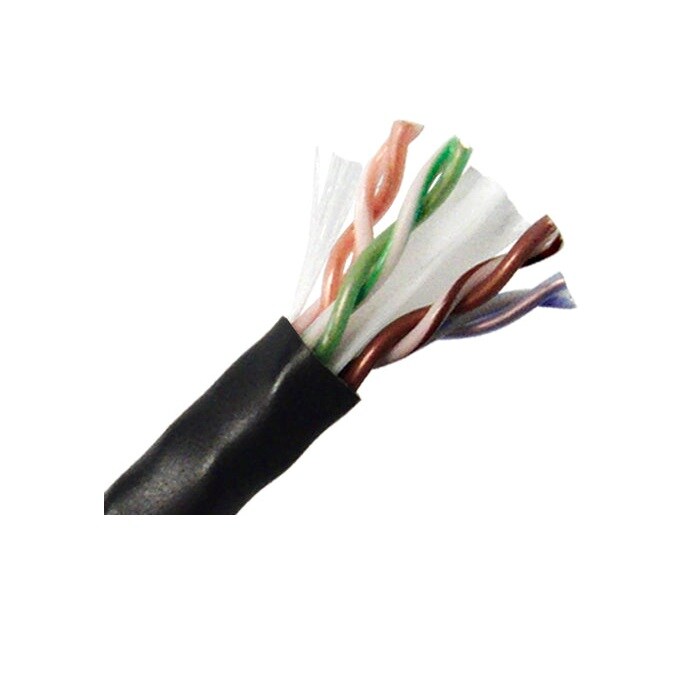

Primus CAT6 Plenum Bulk Ethernet Cable, CMP UL Listed, Solid Copper UTP, 23 AWG 1000FT - Black
Specifications
Specifications C6UP-3224BK
| Weight | 34lbs. / 1000FT |
| Dimension | 16 in. wide x 16 in. high x 9 in. deep |
| Storage Temperature Range | 0 ~ +30°C |
| Installation Temperature Range | 0 ~ +50°C |
| Operating Temperature Range | -20 ~ +60°C Bulk Cable Weight 34lbs. / 1000FT |
| Max. Recommended Pulling Tension | N/A |
| Min. Bend Radius/Minor Axis | N/A |
| Min. Bend/Installation | N/A |
| Test Object | Jacket |
| Test Material | PVC |
| Before Tensile Strength | Min. 1.407 Kgf/mm2▫ Aging Elongation Min. 100%▫ Aging Condition 136°C x 168hrs |
| After Tensile Strength | Min. 75% ▫ Aging Elongation Min. 75% ▫ Cold Bend N/A |
| Conductor Size | 23AWG |
| Conductor Material | Solid Bare Copper |
| Insulation Material | Foam-FEP |
| Insulation Diameter | 0.99mm |
| Number of Conductors | 8 Conductors |
| Number of Pairs | 4 Pairs |
| Outer Shield Material | N/A |
| Outer Jacket Material | Flame Retardant PVC |
| Outer Jacket Diameter | 6.0mm |
| Outer Jacket Rip Cord | Yes |
| Capacitance Unbalance Max | 160 pF/100mm |
| Nominal Velocity of Propagation | N/A |
| Maximum Delay | N/A |
| Maximum Delay Skew | N/A |
| Maximum Conductor DC Resistance | 9.38 (@ 20°C OHm/100m) |
| Maximum Operating Voltage - UL | N/A |
| Maximum DCR Unbalanced | 2% (@ 20°C) |
| Attenuation (Maximum) | ▫ 31.1dB/100m (328.1ft.) @ 250MHz ▫ 52.7dB/100m (328.1ft.) @ 600MHz |
| NEXT (Minimum) | ▫ 35.3dB/100m (328.1ft.) @ 250MHz ▫ 29.0dB/100m (328.1ft.) @ 600MHz |
| PS-NEXT (Minimum) | ▫ 32.7dB/100m (328.1ft.) @ 250MHz ▫ 26.3dB/100m (328.1ft.) @ 600MHz |
| Return Loss (Minimum) | ▫ 10.0dB/100m (328.1ft.) @ 250MHz ▫ 6.2dB/100m (328.1ft.) @ 600MHz |
