Primus Cable C6CMXR-1069BK
- SKU: C6CMXR-1069BK
$329.99
- Manufacturer: Primus Cable
- Data Sheet: Download
Product Information

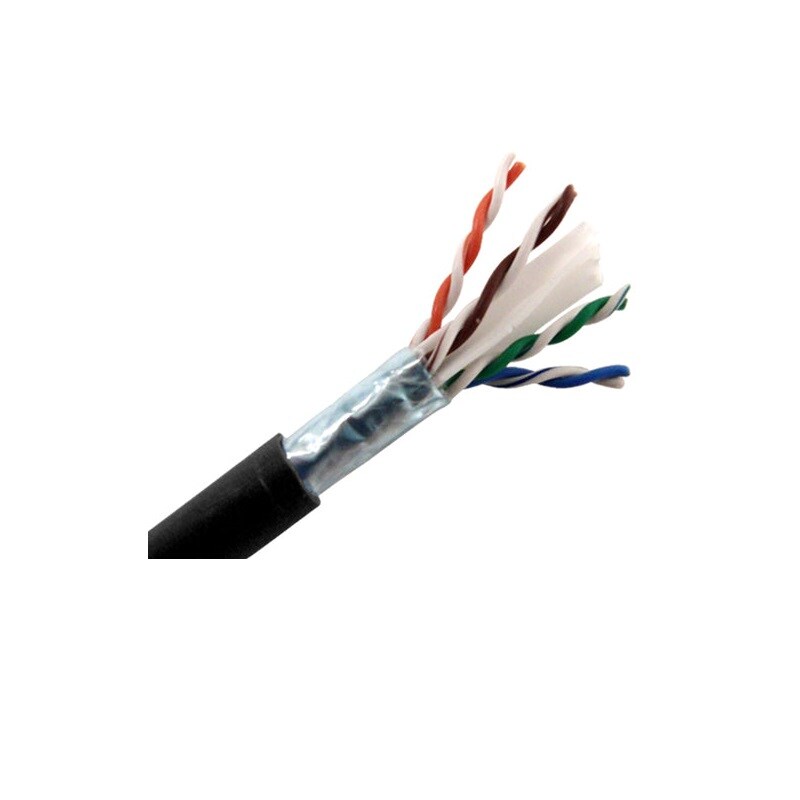

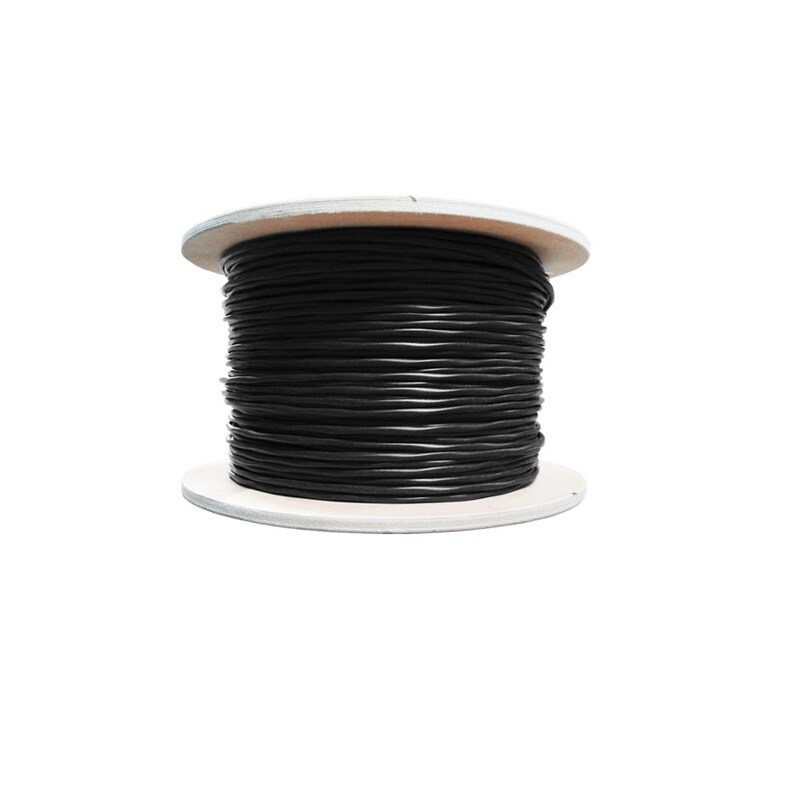

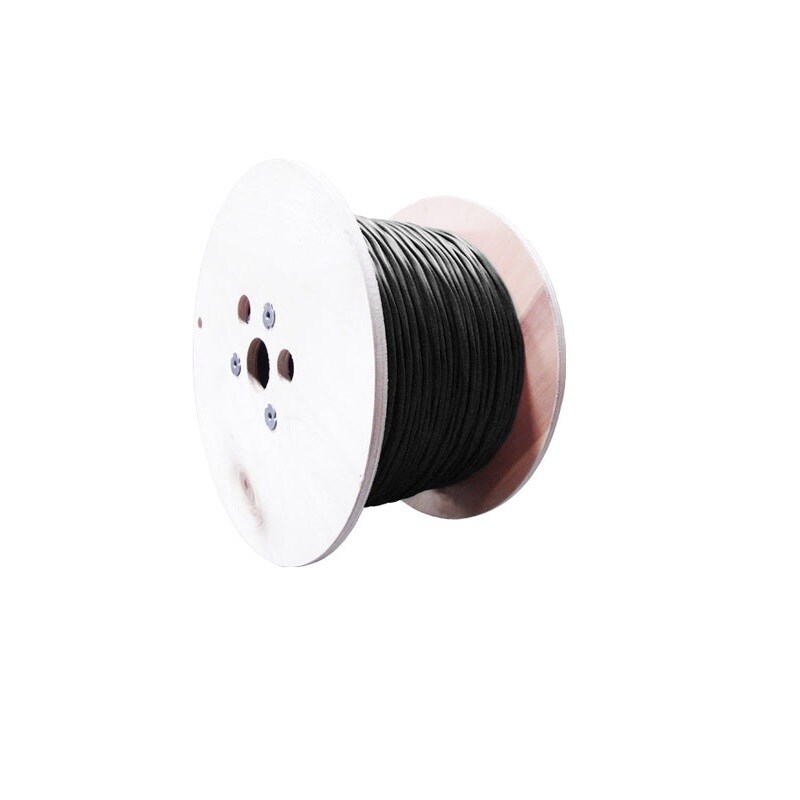

CAT6 Cable 600MHz Indoor/Outdoor UV Resistant Shielded CMR/CMX Drain Wire - 1000 Ft. Black (wooden spool)
Specifications
Specifications
| Weight | 44 lbs |
| Dimension | 16x16x12 Inches |
| Conductor Size | 23AWG |
| Conductor Material | Solid Bare Copper |
| Insulation Material | High Density Polyethylene (HDPE) |
| Insulation Diameter | 1.06 ± 0.01mm |
| Number of Conductors | 8 Conductors |
| Number of Pairs | 4 Pairs |
| Outer Shield Material | Aluminum Foil |
| Drain Wire | Yes, Tinned Copper |
| Outer Jacket Material | FR-PVC (UV) |
| Outer Jacket Diameter | 7.90mm ± 0.2mm |
| Outer Jacket Rip Cord | Yes |
| Mechanical | |
| Storage Temperature Range | -20~+60°C |
| Installation Temperature Range | -20~+60°C |
| Operating Temperature Range | 0~+50°C |
| Bulk Cable Weight | N/A / 1000FT |
| Max. Recommended Pulling Tension | 110N |
| Min. Bend Radius/Minor Axis | 31mm |
| Min. Bend/Installation | 62mm |
| Test Object | Jacket |
| Test Material | PVC |
| Before Tensile Strength | ≥13.8 |
| Aging Elongation | ≥100 |
| Aging Condition | 100°C x 24hrs x 7Days |
| After Tensile Strength | ≥75% of unaged |
| Aging Elongation | ≥75% of unaged |
| Cold Bend | No Visible Cracks (-20°C ± 2°C x 4h) |
| 300 Hours Weatherometer Test | Pass |
| Electrical | |
| Nom. Mutual Capacitance | 46pF/m |
| Pair to Ground Capacitance Unbalance | ≤ 330 (pF/100m) |
| Nominal Velocity of Propagation | 69% |
| Maximumm Propagation Delay | 534+36 (ns/100m) |
| Maximum Delay Skew | ≤ 45 (ns/100m) |
| Maximum Conductor DC Resistance | 9.0 (@ 20°C OHm/100m) |
| Maximum Operating Voltage - UL | 300V RMS |
| Maximum DCR Unbalanced | 5% (@ 20°C) |
| Attenuation (Maximum) | 22.0dB/100m (328.1ft.) @ 100MHz, 44.9dB/100m (328.1ft.) @ 350MHz |
| 1.0 - 250.0MHz Impedance | 100Ω ± 15% |
| NEXT (Minimum) | 35.3dB/100m (328.1ft.) @ 100MHz, 27.2dB/100m (328.1ft.) @ 350MHz |
| PS-NEXT (Minimum) | 32.3dB/100m (328.1ft.) @ 100MHz, 24.2dB/100m (328.1ft.) @ 350MHz |
| Return Loss (Minimum) | 20.1dB/100m (328.1ft.) @ 100MHz, 16.3dB/100m (328.1ft.) @ 350MHz |
