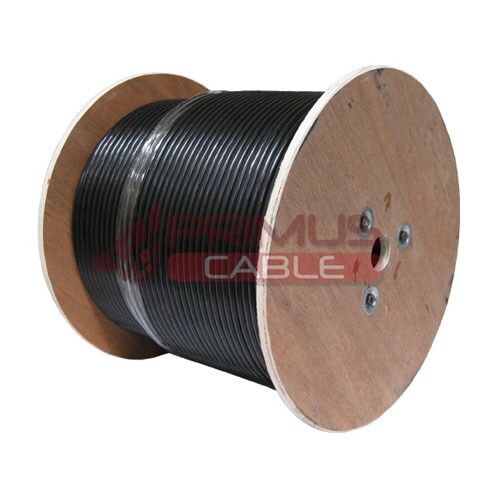

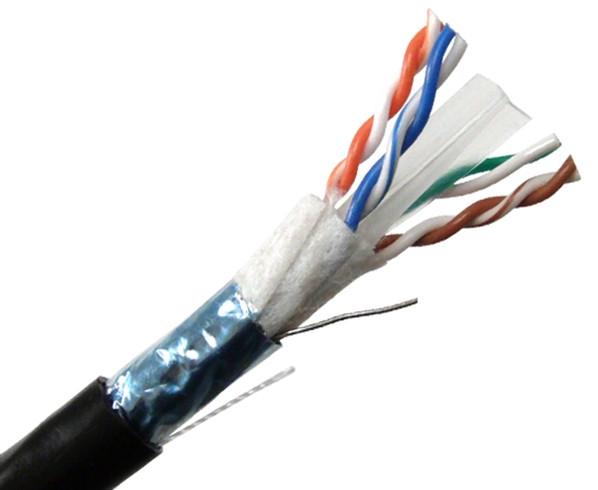

Cable, CAT6, Shielded, Outdoor, Direct Burial, WaterProofTape, 23AWG, STP, CMXT, UV 1000ft Black jacket
- SKU: C6CMXT-2045BK
$289.99
- Manufacturer: Primus Cable
- Data Sheet: Download
Product Information
Cable, CAT6, Shielded, Outdoor, Direct Burial, WaterProofTape, 23AWG, STP, CMXT, UV 1000ft Black jacket
Specifications
Specifications C6CMXT-2045BK
| Physical Characteristics | |
| Conductor Size | 23AWG |
| Conductor Material | Solid Bare Copper |
| Insulation Material | High Density Polyethylene (HDPE) |
| Insulation Diameter | 1.12 ± 0.03mm |
| Number of Conductors | 8 Conductors |
| Number of Pairs | 4 Pairs |
| Screening Material | Mylar + Water Blocking Tape |
| Drain Wire | Tinned Copper |
| Outer Shield Material | AL Foil/Mylar |
| Outer Jacket Rip Cord | Yes |
| Outer Jacket Material | LDPE (Complies RoHS) |
| Outer Jacket Diameter | 7.8mm ± 0.4mm |
