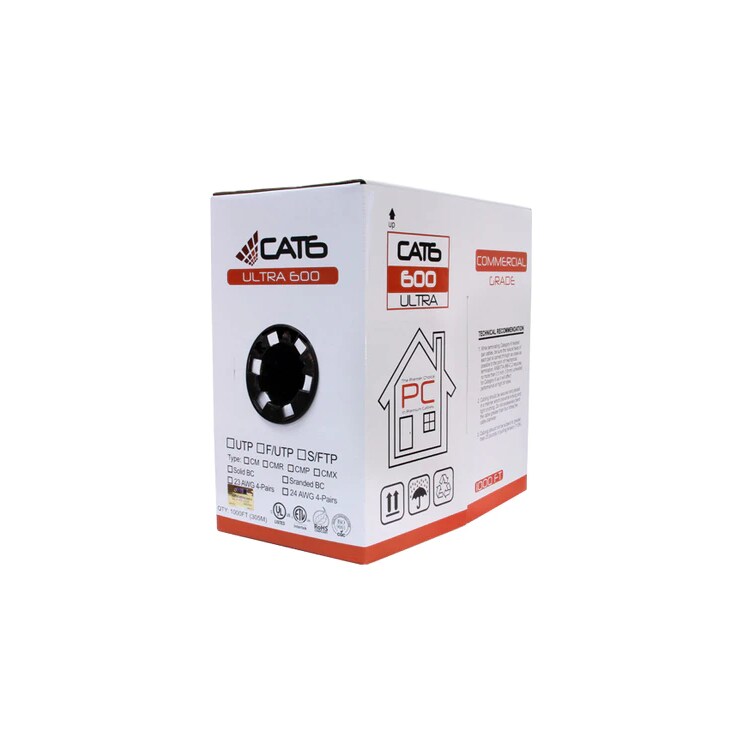

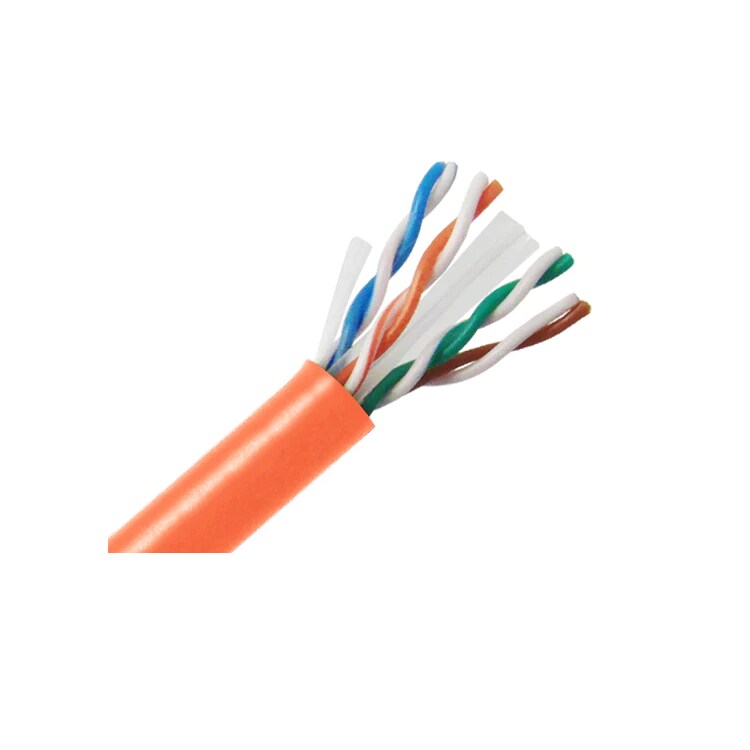

CAT6 Bulk Riser Ethernet Cable, CMR UL Listed Solid Copper UTP, 24 AWG 1000FT (Orange)
Specifications
Specifications C6U-5018RO
| Physical | |
| Conductor Size | 24AWG |
| Conductor Material | Solid Bare Copper |
| Insulation Material | High Density Polyethylene |
| Insulation Diameter | 0.97 ± 0.03mm |
| Number Of Conductors | 8 Conductors |
| Number Of Pairs | 4 Pairs |
| Drain Wire | No |
| Outer Jacket Material | CMR-UL PVC (Complies RoHS) |
| Outer Jacket Diameter | 5.7mm ± 0.4mm |
| Outer Jacket Rip Cord | Yes |
| Mechanical | |
| Storage Temperature Range | 0 ~ +30°C |
| Installation Temperature Range | 0 ~ +50°C |
| Operating Temperature Range | -20 ~ +60°C |
| Bulk Cable Weight Dimension | 27lbs. 16" x 16" x 9.5" |
| Max. Recommended Pulling Tension | N/A |
| Min. Bend Radius/Minor Axis | N/A |
| Min. Bend/Installation | N/A |
| Test Object | Jacket |
| Test Material | PVC |
| Before Tensile Strength | ≥13.5 |
| Aging Elongation | ≥150 |
| Aging Condition | 100°C for 168Hrs. |
| After Tensile Strength | ≥12.5 |
| Aging Elongation | ≥125 |
| Cold Bend | No Visible Cracks (-20°±2°x4h) |
| Electrical | |
| Unbalanced to Ground Capacitance Max | N/A |
| Nominal Velocity of Propagation | N/A |
| Maximum Delay | 537.60 @ 100MHz (ns/100m) |
| Maximum Delay Skew | ≤ 44 (ns/100m) |
| Maximum Conductor DC Resistance | 9.38 (@ 20°C OHm/100m) |
| Maximum Operating Voltage - UL | 300V RMS |
| Maximum DCR Unbalanced | 5% (@ 20°C) |
| Attenuation (Maximum) | ▫ 31.1dB/100m (328.1ft.) @ 250MHz ▫ 52.7dB/100m (328.1ft.) @ 600MHz |
| 1.0 - 250MHz Impedance | 100Ω ± 15% |
| NEXT (Minimum) | ▫ 35.3dB/100m (328.1ft.) @ 250MHz ▫ 29.0dB/100m (328.1ft.) @ 600MHz |
| PS-NEXT (Minimum) | ▫ 32.7dB/100m (328.1ft.) @ 250MHz ▫ 26.3dB/100m (328.1ft.) @ 600MHz |
| Return Loss (Minimum) | ▫ 10.0dB/100m (328.1ft.) @ 250MHz ▫ 6.2dB/100m (328.1ft.) @ 600MHz |
