Product Information

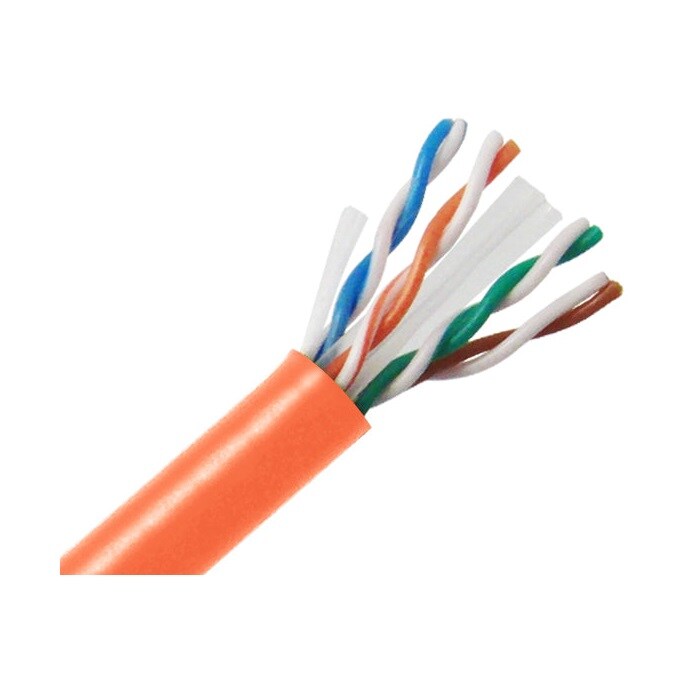

CAT6 Bulk Cable - MIG+ (U/UTP) CMR, 23AWG 8/C Solid BC (UL), 1000' Pull Box - Orange
Specifications
Specifications C6U-419GR
| Weight | 33.05 lbs |
| Dimensions (L x W x H) | 17" x 17" x 10" |
| Conductor Size | 23AWG |
| Conductor Material | Solid Bare Copper |
| Insulation Material | High Density Polyethylene |
| Insulation Diameter | 1.003 ± 0.03mm |
| Number of Conductors | 8 Conductors |
| Number of Pairs | 4 Pairs |
| Outer Shield Material | N/A |
| Drain Wire | No |
| Outer Jacket Material | CMR-UL PVC (Complies RoHS) |
| Outer Jacket Diameter | 6.0mm ± 0.3mm |
| Outer Jacket Rip Cord | Yes |
