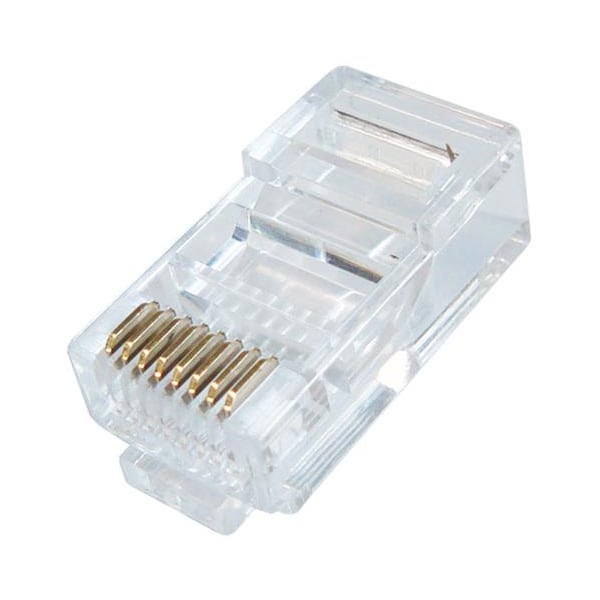

*** USE PN CN1-009-8CUL-100 *** Connector, RJ-45, CAT5e, Plug, for Round Solid / Stranded Cable, 8P 8C, 50 Micro-inches Gold Plated
- SKU: CN1-009-8CUL
$0.14 $0.35
- Manufacturer: Primus Cable
- Data Sheet: Download
Product Information
*** USE PN CN1-009-8CUL-100 *** Connector, RJ-45, CAT5e, Plug, for Round Solid / Stranded Cable, 8P 8C, 50 Micro-inches Gold Plated
Specifications
Specifications CN1-009-8CUL
| Cable-to-Plug Tensile Strength | 20 Pound Min. |
| Durability | 200 Matting Cycles |
| Housing | Polycarbonate, UL94V-0 |
| Color | Transparent |
| Contact Blade | Copper Alloy |
| Conductor | Stranded & Solid Wire, 24 - 26 AWG (Plug Can Be Used For Wire OD’s of 0.96 - 1.02 mm) |
| Gold Plating | 50µ” |
| UL Applications | 250 Volts ACMax., at 2 AMPS |
| Dielectric with Standing Voltage | 500 Volts AC |
| Insulation Resistance | 100 M Ω |
