RF Elements HG3-CC-A60 ( Discount / Open Box)
- SKU: HG3-CC-A60 ( Discount / Open Box)
$205.40 $260.00
+ $19.50 Tariff
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information

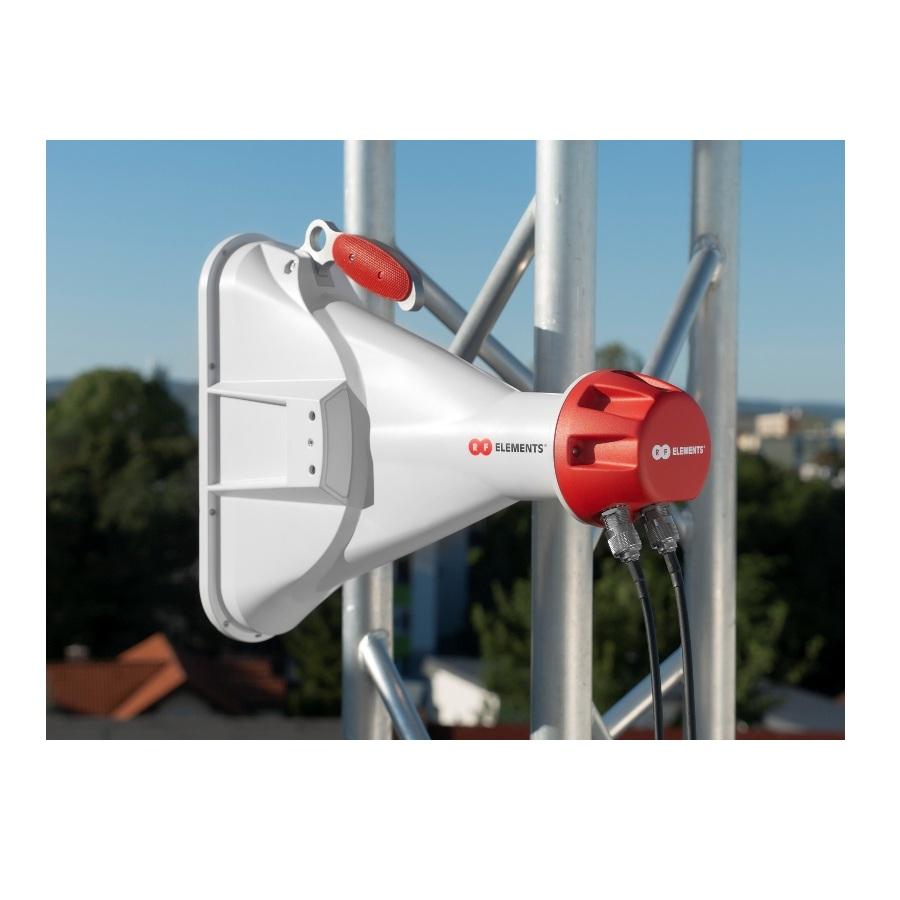

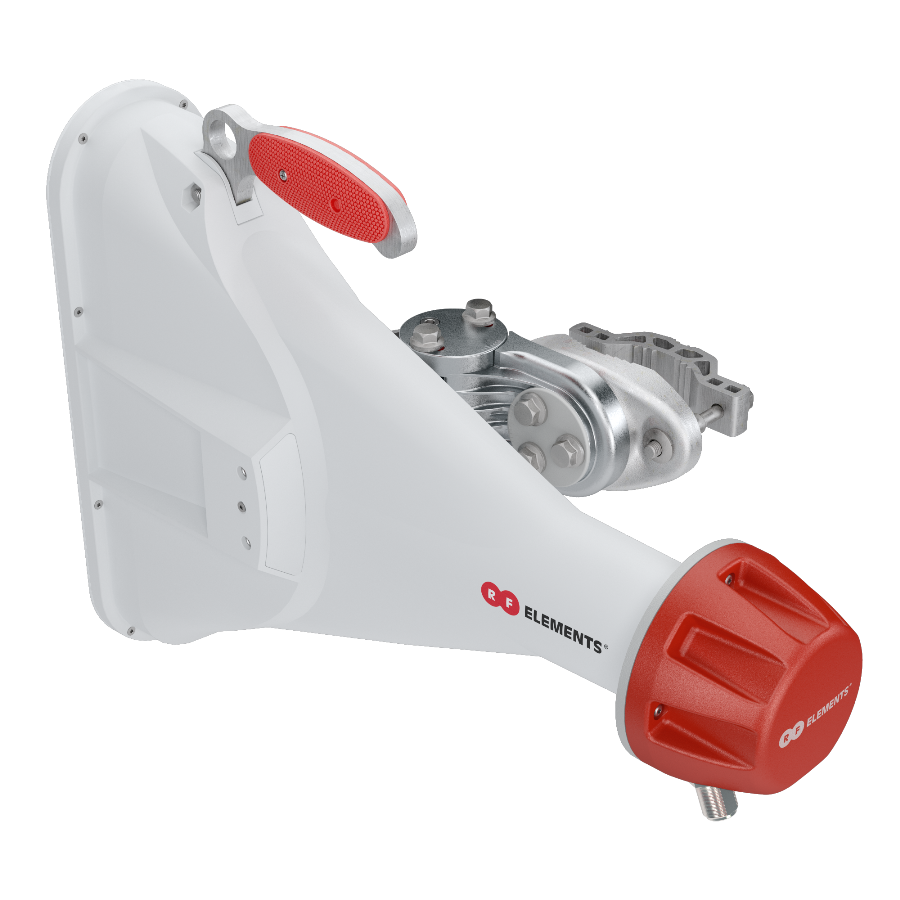

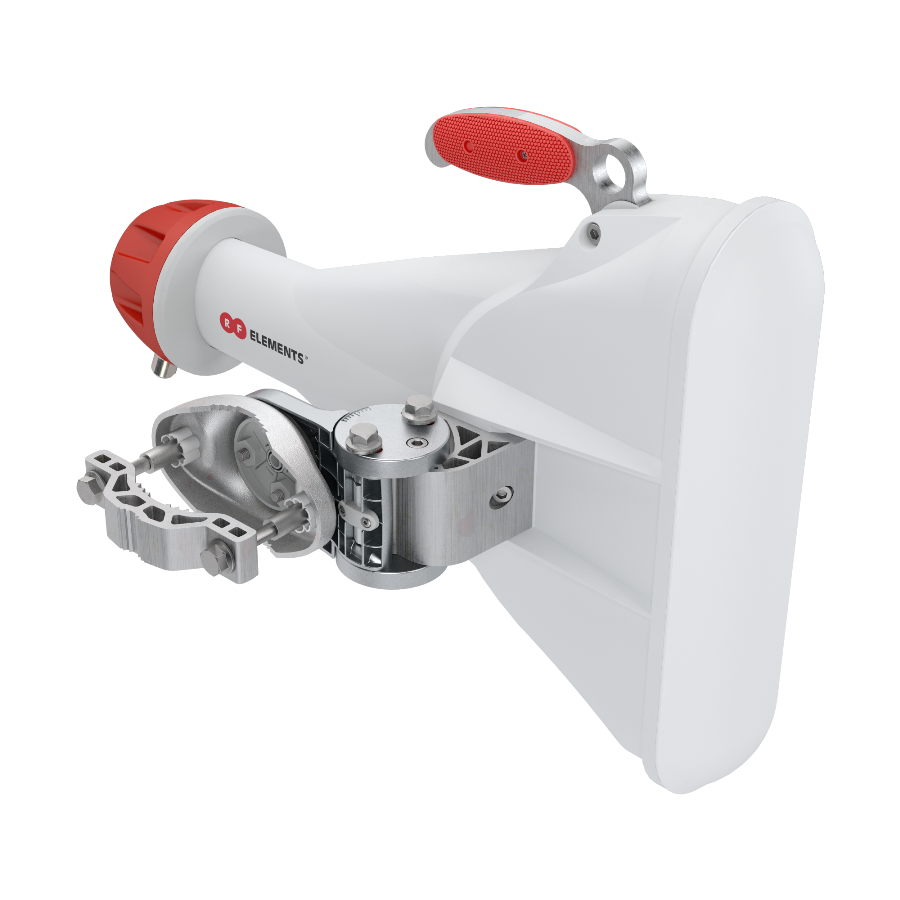

60° Asymmetrical Beam Antenna ( Discount / Open Box)
Specifications
Specifications HG3-CC-A60
| TECHNICAL | |
| Radio Connection | 2x N Female Bulkhead Connector |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel |
| Enviromental | IP55 |
| Pole Mounting Diameter | 36-80 mm (recommend as close to 80mm as possible) |
| Temperature | -35°C to +55°C (-31°F to +131°F) |
| Wind Survival | 160 km/hour |
| Wind Loading | 43 N at 160 km/hour |
| Mechanical Adjustment | ± 25° Elevation, ± 20° Azimuth |
| Weight | 5.1 kg / 11.2 lbs – single unit* 6.7 kg / 14.8 lbs – single unit incl. package* |
| Single Unit | Retail Box: 515 × 370 × 140 mm / 20.3 × 14.6 × 5.5 inch* |
| PERFORMANCE | |
| Frequency Range | 5180 - 6000 MHz |
| Gain | 17 dBi |
| Azimuth Beam Width -3 dB | H 45° / V 42° |
| Elevation Beam Width -3 dB | H 17° / V 16° |
| Azimuth Beam Width -6 dB | H 60° / V 60° |
| Elevation Beam Width -6 dB | H 25° / V 25° |
| Beam Efficiency** | 95 % |
| Front-to-Back Ratio | 27 dB |
| VSWR Max 5180-6000 MHz | 1.6 |
| Polarization | Dual Linear H + V |
| Impedance | 50 Ohm |
