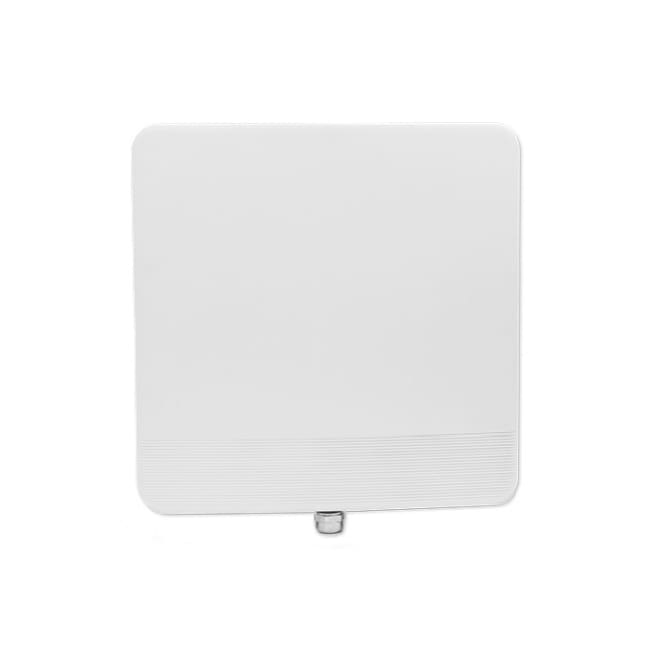

Radwin 5000 HPMP SU PRO ODU Subscriber Unit Radio
- SKU: RW-5H00-1P54
$251.49 $515.00
- Manufacturer: Radwin
- Data Sheet: Download
Product Information
Radwin's RW-5H00-1P54 SU PRO is an integrated subscriber unit that delivers up to 100Mbps net aggregate throughput and supports SLA (CIR)or Best-Effort service level. SU PRO supports 5.4 to 5.8GHz and complies with IC and FCC/IC regulations. The unit includes an integrated 22dBi antenna.
Product Features- Simplified installation using a Smartphone app
- Robust and reliable operation in harsh environmental conditions including obstructed line-of-sight scenarios
- Guaranteed Service Level Agreement based on CIR or Best Effort Service level
- Up to 100Mbps net aggregated throughput, upgradable to 250Mbps
- Long range - Up to 40km/25miles
- 22dBi antenna gain
Specifications
Specifications KPPA-2GHZDP65S-WOC1
| Configuration | |
| Architecture | Outdoor Unit with an integrated antenna |
| PoE to ODU Interface | Outdoor CAT-5e; Maximum cable length: 100m for 10/100BaseT and 75m for 1000BaseT |
| Radio | |
| Max Capacity | 100 Mbps net aggregate throughput; Upgradable to 250 Mbps with license key |
| Range | Up to 40 km / 25 miles |
| Channel Bandwidth | Configurable: 20, 40, 80 MHz (for the default band); Dynamic Channel BW selection (20/40/80 MHz) |
| Modulation | MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM) |
| Adaptive Modulation & Coding | Supported |
| DFS | Supported (IC) |
| Diversity | Supported |
| Max Tx Power | 21 dBm |
| Duplex Technology | TDD |
| Error Correction | FEC k = 1/2, 2/3, 3/4, 5/6 |
| Encryption | AES 128 |
| Support Indoor units | RADWIN PoE device (included in the package); pinout: (+) pins 4/5, (-) pins 7/8 |
| Uplink / Downlink Allocation | Configurable: Symmetric or Asymmetric |
| Layer 2 | HUB Mode |
| QoS | Packet classification to 4 priority queues according to 802.1P or Diffserv |
| VLAN Support | 802.1Q, QinQ, 4094 VLANs |
| ODU Management | IPv4/IPv6 dual-stack; SNMP v1, SNMPv3; HTTP/HTTPS using web browser |
| Mechanical | |
| ODU Dimensions | 32.5(w) x 32.5(h) x 6.4(d) cm |
| ODU Weight | 2 kg / 4.41 lbs |
| Power | |
| Power Feeding | Power provided over ODU-IDU cable |
| Power Consumption | <9W |
| Environmental | |
| Operating Temperatures | -35°C to 60°C / -31°F to 140°F |
| Humidity | 100% condensing, IP67 (totally protected against dust and against immersion in water up to 1m) |
| Safety | |
| US/CAN (cTUVus) | UL 60950-1, UL 60950-22, CAN/CSA C22.2 60950-1, CAN/CSA C22.2 60950-22 |
| CE/IEC | EN/IEC 60950-1, EN/IEC 60950-22 |
| EMC | |
| FCC | 47 CFR, Part15, Subpart B, Class B |
| ETSI | EN 301 489-1, EN 301 489-4, EN 301 489-17 |
| CAN/CSA-CEI/IEC | AS/NZS, CISPR 32 2015 Class B |
| Integrated Antenna | |
| Gain | 21 dBi |
| VSWR | 2.0 : 1 |
| 3 dB Azimuth Beamwidth | 10 Deg. (typ) |
| Polarization | Dual Linear (Vertical and Horizontal) |
| Sidelobes Level | -12 dB(typ) |
| Cross Polarization | -25dB (typ) |
| F/B Ratio | -25 dB |
| Port To Port Isolation | 30 dB (typ) |
| Lightning Protection | DC Grounded |
