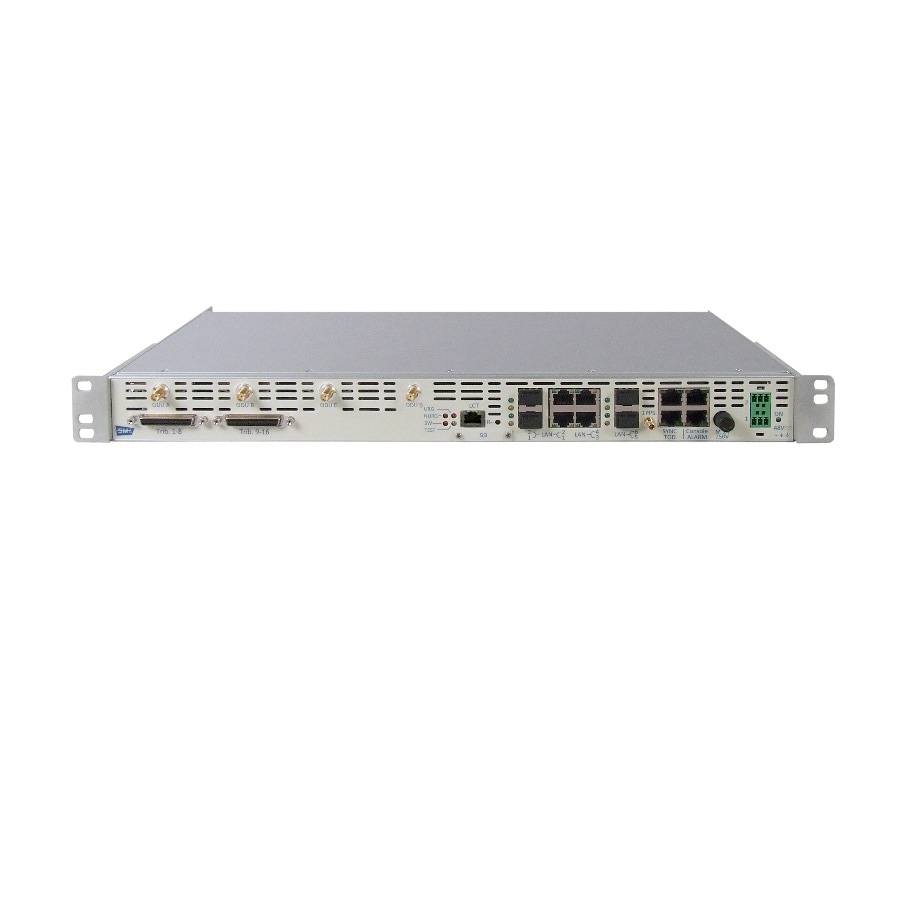

SIAE Microelettronica AGS-20 Indoor Unit, 4xIF Radio Interfaces, 2x10GE + 6xGE LAN Interfaces (6 Simultaneous), -48 VDC DC Input, 1 Year Warranty
- SKU: AGS20-IF4GE6-10G
$6,494.00
- Manufacturer: SIAE
- Data Sheet: Download
Product Information
ISP Supplies supplies the SIAE Microelettronica AGS-20 Indoor Unit, featuring 4xIF radio interfaces, 2x10GE + 6xGE LAN interfaces (6 simultaneous), -48 VDC DC input, and comes with a 1 year warranty.
AGS20 series is the state of art microwave radio solution and the next Generation Indoor Unit for split Mount Radio, capable of addressing traditional split mount application with multiple IF radio, as well as aggregation of multiple all out door radio solutions, or a mix of the solutions. AGS20 include three physical mechanical arrangements to satisfy simple point to point needs to the most complex sites including nodal configurations and scaling capacity in line with network growth. The IDU can support a variety of interfaces with a mix of GE and Radio IF interfaces, for maximum flexibility when interconnecting heterogeneous technologies.
AGS20 is a fully integrated single box solution. It offers a complete range of interfaces: Radio, 10/2.5/1 Gigabit/Fast Ethernet, E1 both native and pseudo wire and STM-1. AGS20 can support up to four IF interfaces, allowing the set up a four direction nodal solution in a single rack unit IDU, or Radio LAG over 4x ODUs, with best cost/performance relationship. AGS20 minimizes space consumption without renouncing to functionalities.
Specifications
Specifications AGS20-IF4GE6-10G
| Modulation Schemes | 4 QAM / 16 QAM / 32 QAM / 64 QAM / 128 QAM / 256 QAM / 512QAM / 1024 QAM / 2048 QAM |
| Channel Spacing | 10 MHz / 20 MHz / 30 MHz / 40 MHz / 60 MHz |
| Throughput | Up to 1 Gbps per radio channel |
| Frequency Stability | ±5 ppm |
| Frequency Agility | 250 KHz (software programmable) |
| RTPC | Up to 30 in 1 dB steps |
| ATPC | Up to 30 in 1 dB steps |
| IDU/ODU Interconnection per terminal | 50Ω Coaxial Cable per RT |
| Dimensions (WxHxD) IDU | 17.4 x 1.7 x 8.8 (in) |
| ODU (below 18 GHz) | 10 x 10 x 4.5 (in) |
| ODU (18 to 42 GHz) | 7.2 x 7.2 x 2.6 (in) |
| Power Supply | -48 Vdc ( -15%, +20%) |
| Overall Power Consumption | 1+0 terminal ≤ 45 W 1+1 terminal ≤ 60 W |
| Environmental Performance | ODU Weather Proofing Class: IP65 IDU Temperature Range: -5°C to +50° ODU Temperature Range: -35°C to +55° Working Temperature range with performance not guaranteed: -45°C to +60°C |
| Altitude | 9,845 ft. |
| Compliant with | FCC Part 101 |
INDOOR UNIT AGS20s
| AGS20 version | 1xIF | 2xIF | 4xIF |
| Configuration | 1+0 | 1+0 / 1+1 / 2+0 / XPIX / radio LAG | 1+0 / 1+1 / 2+0 / 4+0 / XPIX / radio LAG |
| Switching capability | 25 Gbps full duplex | 25 Gbps full duplex | 25 Gbps full duplex |
| Modulation | 4 QAM to 2048 QAM with hitless ACM | 4 QAM to 2048 QAM with hitless ACM | 4 QAM to 2048 QAM with hitless ACM |
| Ethernet/Radio interfaces | 1 x IF (ODU) 2 x GE electrical 4 x GE optical / 2.5 Gbps 2 x Combo (GE electrical / optical) | 2 x IF (ODU) 2 x GE electrical 4 x GE optical / 2.5 Gbps 2 x Combo (GE electrical / optical) | 4 x IF (ODU) 2 x GE electrical 4 x GE optical / 2.5 Gbps 2 x Combo (GE electrical / optical) |
| Local Maintenance interfaces | Console port / LAN port | Console port / LAN port | Console port / LAN port |
| Local Maintenance interfaces | 1pps / ToD / 2048 Khz | 1pps / ToD / 2048 Khz | 1pps / ToD / 2048 Khz |
