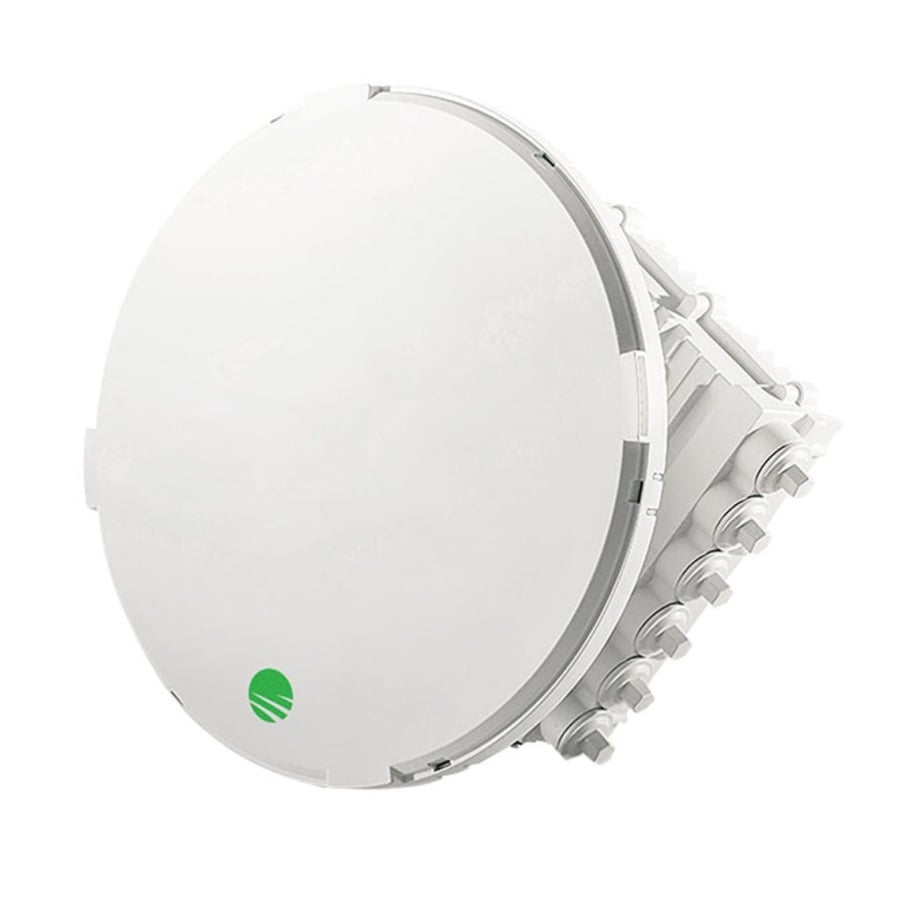

Siklu EtherHaul-2500FX TX High ODU
- SKU: EH-2500FX-ODU-H-EXN
$4,144.25
- Manufacturer: Siklu
- Data Sheet: Download
Product Information
TX High Power: POE and DC, 1G Upgradable to 2G, Ports: 2x Copper + 2x Fiber, High Power
Specifications
Specifications EH-2500FX-ODU-H-EXN
| Frequency, Duplexing scheme | 71-76 / 81-86GHz, FDD |
| Modulation | BPSK1/BPSK2/QPSK/QAM16/QAM32 |
| Max Tx power | +19dBm |
| Adaptive rate | Hitless adaptive bandwidth, coding and modulations |
| Throughput | Up to 2000Mbps full-duplex |
| Channel & Bandwidth | 1000Mbps@250MHz 2000Mbps@500/750/1250MHz |
| Traffic Interfaces | 4x GE ports: 2xCopper RJ45 + 2 SFP’s |
| Antenna options | 1ft (31cm) Cassegrain reflector - 43dBi antenna gain, 0.9° 2ft (65cm) Cassegrain reflector - 50dBi antenna gain , 0.4° |
| Input power | PoE+ (IEEE 802.3at); ±36+57VDC |
| Ethernet features | IEEE 802.1d Transparent Bridging, IEEE 802.1ad provider bridge Smart Ethernet pipes QoS, traffic shaping and policing |
| Advanced L2 features | Eth OAM (IEEE802.1ag/Y.1731/IEEE802.3ah) G.8032 ERPS delivering sub 50mSec ring protection |
| Synchronization | 1588 TC Synchronous Ethernet ITU-T G.8261/8262/8264 |
| MEF compliant | MEF services compliant MEF 9,14 and 21 complaint |
| Management | Web GUI (one click management of local & remote units) Embedded CLI, SNMPv2/3, in-band, out-of-band Zero touch turn-up, TACACS+, RADIUS |
| Environmental Operating | Temperature: -45° ÷ +55°C (-49° ÷ +131°F) Ingress |
| Protection Rating | IP67 |
| Regulatory | ETSI EN 302 217, FCC 47 CFR part 101:2009 , CE marked, EMC, safety UL60950 |
| Dimensions | ODU only: (H x W x D) 24.5 cm x 22.5 cm x 7 cm (9.7” x 8.9” x 2”) ODU + 1ft Antenna: (Dia. x Depth) 31 cm x 13 cm (12.2” x 4.3”) ODU + 2ft antenna: (Dia. x Depth) 65 cm x 37 cm (25.6” x 15.35”) |
| Weight | ODU + 1ft antenna: 4.5 kg ODU + 2ft antenna: 9.4 Kg |
