Product Information

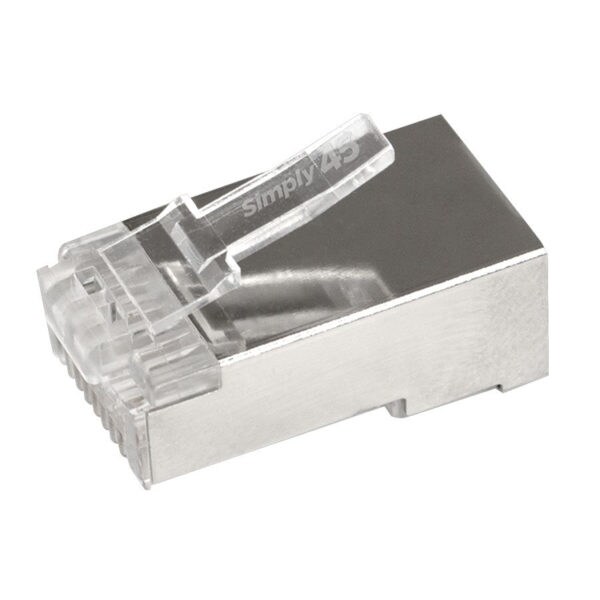

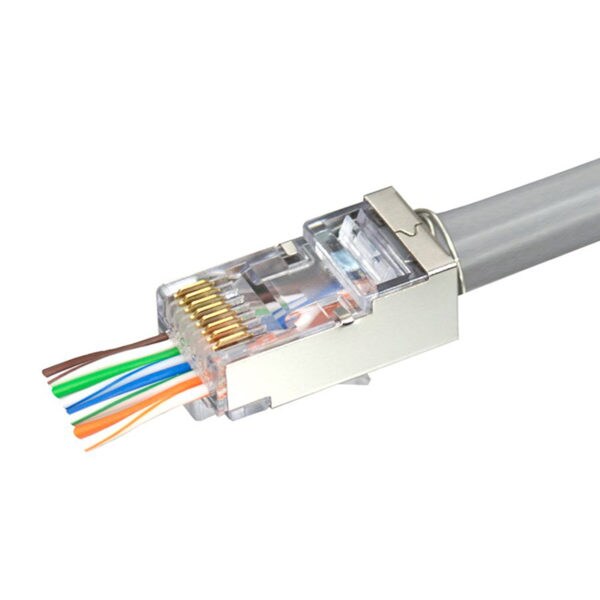

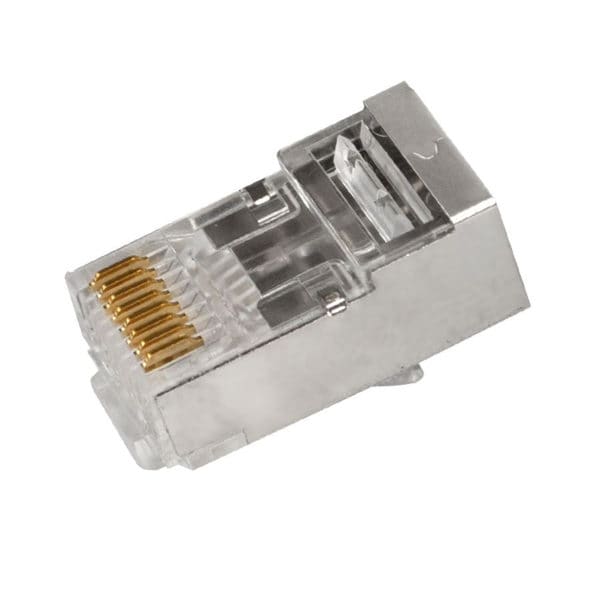

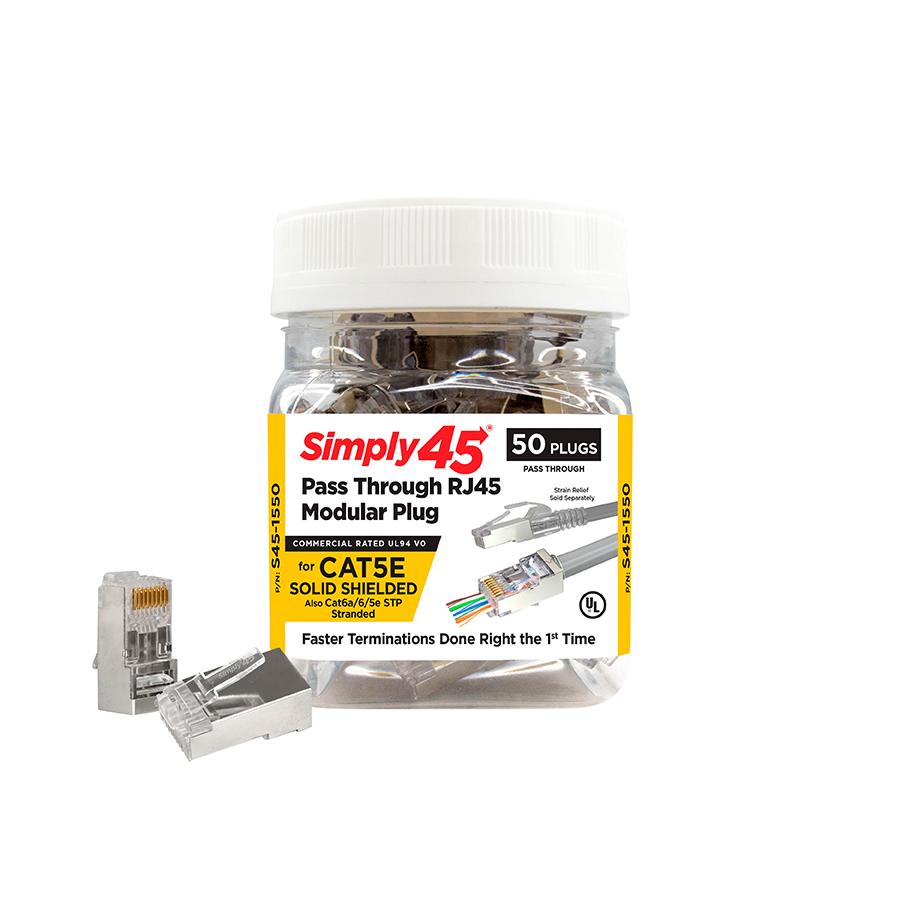

Cat 5e STP Shielded RJ45 Pass-Through Modular Plug (50-Piece Jar)
Specifications
Specifications S45-1550
| Weight | 0.48 lb |
| Dimensions (L x W x H) | 2.6 x 2.6 x 3.3 |
| Performance | Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7 |
| Wire Cond(s) OD | 24 AWG Solid/ 28-26 AWG Stranded:0.95mm - 1.05mm (0.037” - 0.041”) |
| Max LAN Cable OD | 6.5mm (0.255”) |
| Supports PoE/PoH | Yes |
| Cable Fire Resistance Ratings | Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass |
| Flame Autoextinguish | UL94 V0, IEC 60695-11-10 |
| Contact Material | Phosphor Bronze - .012" thick |
| Contact Plating | Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
| Plug Material | Polycarbonate |
| Shielded Material | Hard Brass |
| Shielded Plating | 80 Micro-Inch minimum Nickel Plating |
| Plug Tolerances and Dimensions | Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
| Conductor Type(s) | Solid and Stranded |
| Operating Temperature | -40º C to +70º C |
| Insertion/Extraction Life | 2000 Minimum Cycles |
| Contact Resistance | 20 Milli-Ohms maximum |
| Current/Voltage | 30 VAC/42 VDC at 1.5 Amps |
| Compliance | UL Listed, RoHS, FCC, NEC, TAA |
