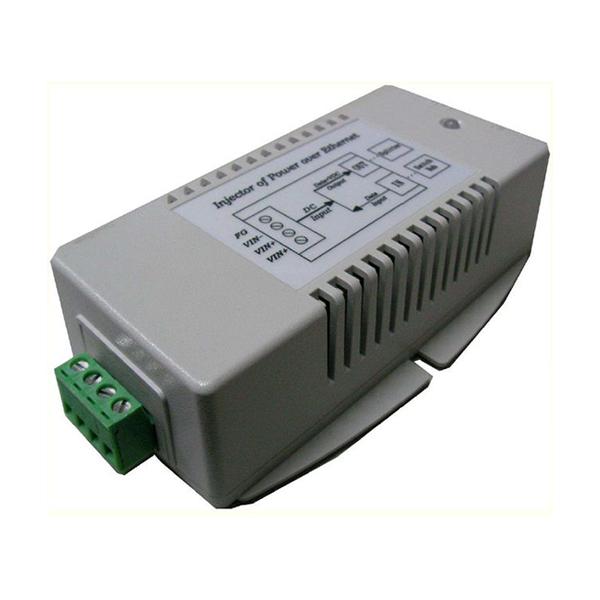

Tycon Power TP-DCDC-2448Dx2-HP
- SKU: TP-DCDC-2448Dx2-HP
$71.07 $113.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
18-36VDC IN, Qty 2 802.3af/at 56 VDC 21W OUT DC to DC Converter and POE Inserter
Specifications
Specifications TP-DCDC-2448Dx2-HP
| Input Voltage | +/- 18VDC to 36VDC |
| Input Connector | Screw Type Compression Wire Terminal (12 AWG Max) |
| POE Specification | Active PoE 802.3af/at (Mode B, 2 Pair) |
| Output Voltage (+/-2.5%) | 56VDC |
| Data in & Data/POE Output Connector | RJ45 (Shielded) |
| Output Current (max) | 0.63A X 2 |
| Output Power (total) | 70W |
| Self-Consumption Power | 2W |
| Efficiency (min) | 80% |
