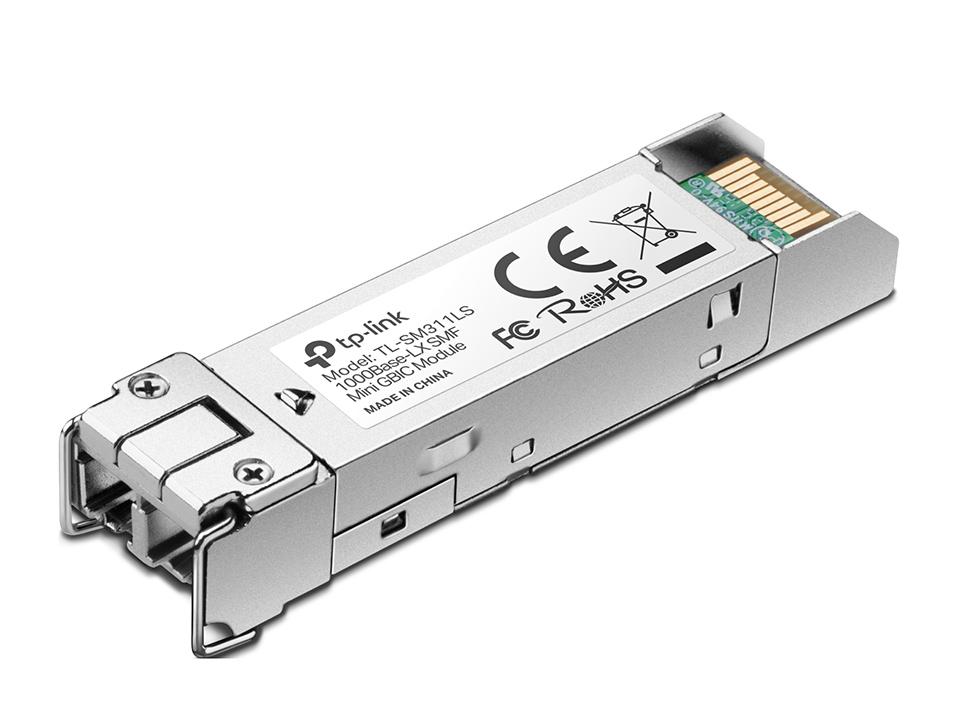

TP-Link Gigabit MiniGBIC SFP Module SM 1310nm 20km
- SKU: TL-SM311LS
$19.99
- Manufacturer: TP-Link
- Installation Guide: Download
Product Information
The TL-SM311 series of Fiber Module Cards were introduced for extending transfer distance. When attached to smart switches, they can extend the distance by several kilometers and even tens of kilometers which can satisfy the distance requirement of LAN.
Product Features- Up to 20km transmission distance in 9/125 µm SMF (Single-Mode Fiber)
- Compatible with all SFP ports on TP-Link products including JetStream switches, and media converter MC220L.
- Work with MC210CS with a single-mode fiber connection
- SFP Module TL-SM311LS
- Installation Guide
Specifications
Specifications TL-SM311LS
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 1310nm |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cabel | Single-mode Fiber |
| Fiber Type | 9/125 μm Single-mode |
| Max. Cable Length | 10km |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Environment | Operating Temperature: 0℃~70℃ (32℉~158℉) Storage Temperature: -40℃~80℃ (-40℉~176℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
