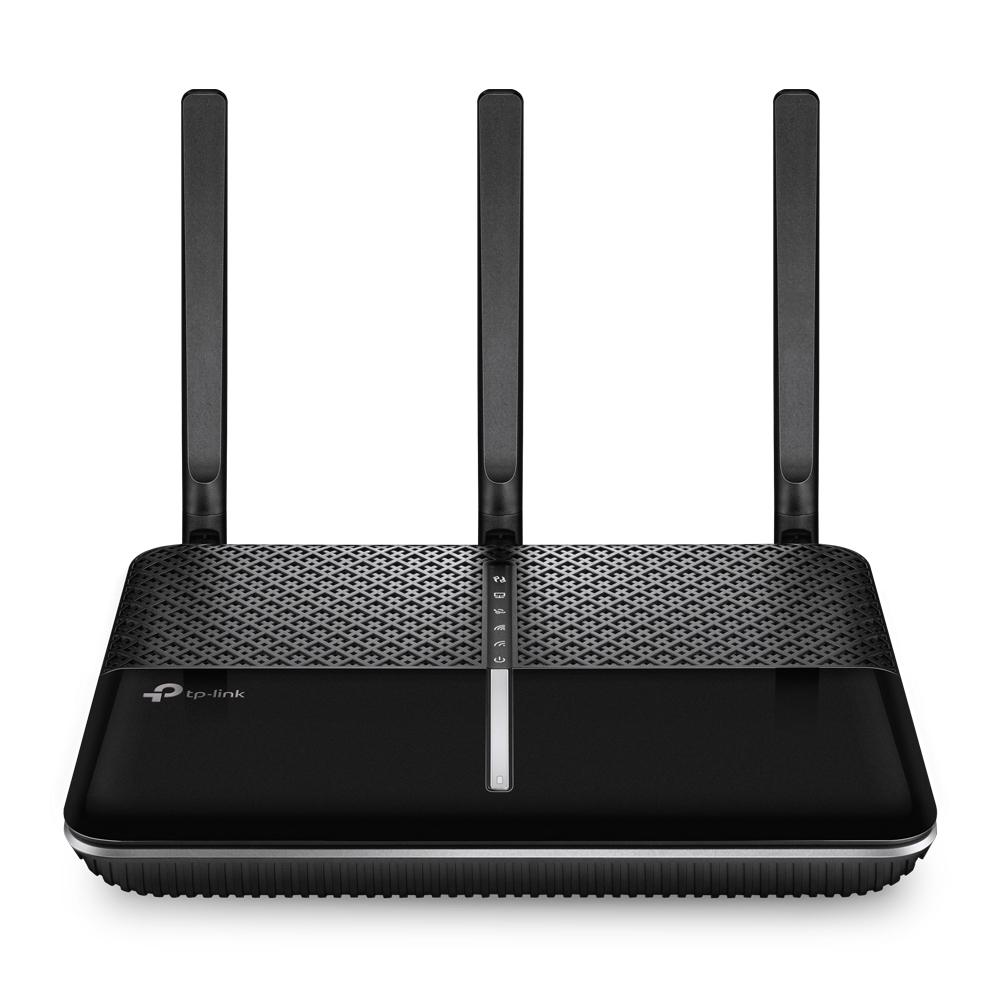

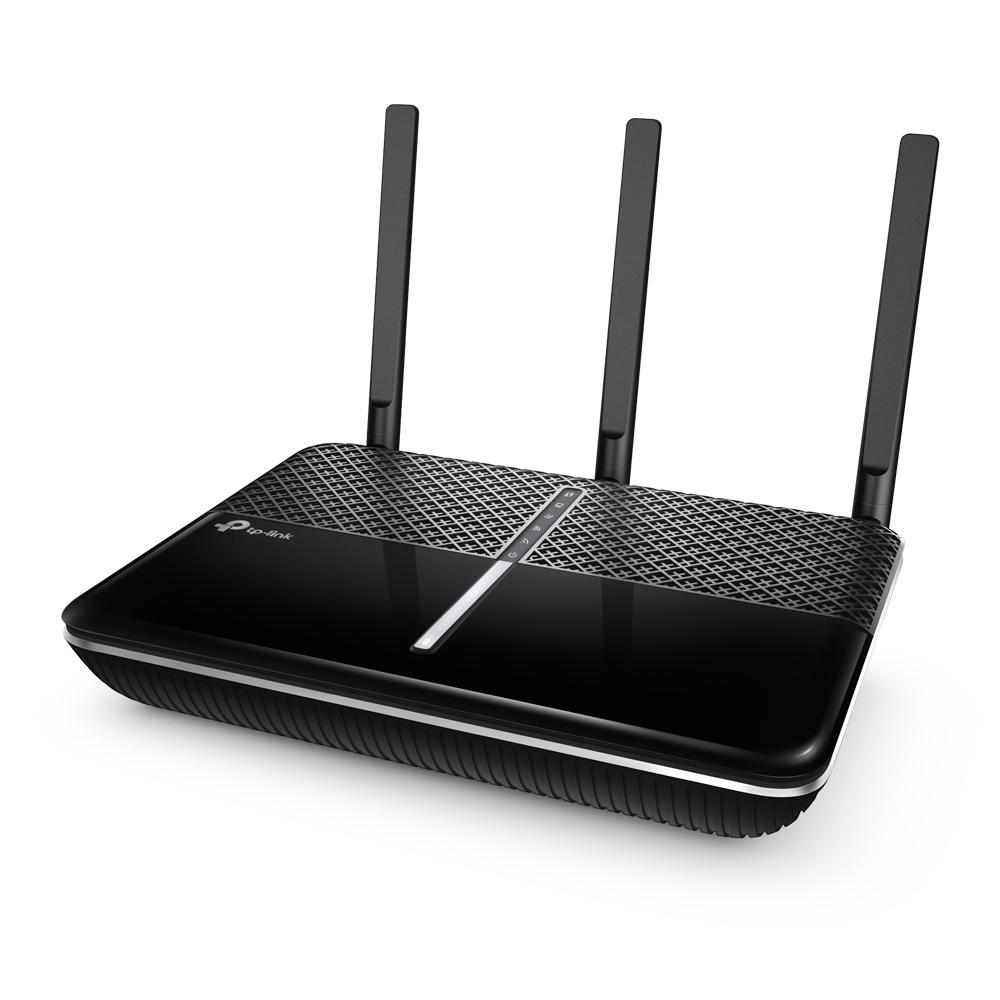

TP-Link Archer A10
- SKU: Archer A10
$99.97
Product Information

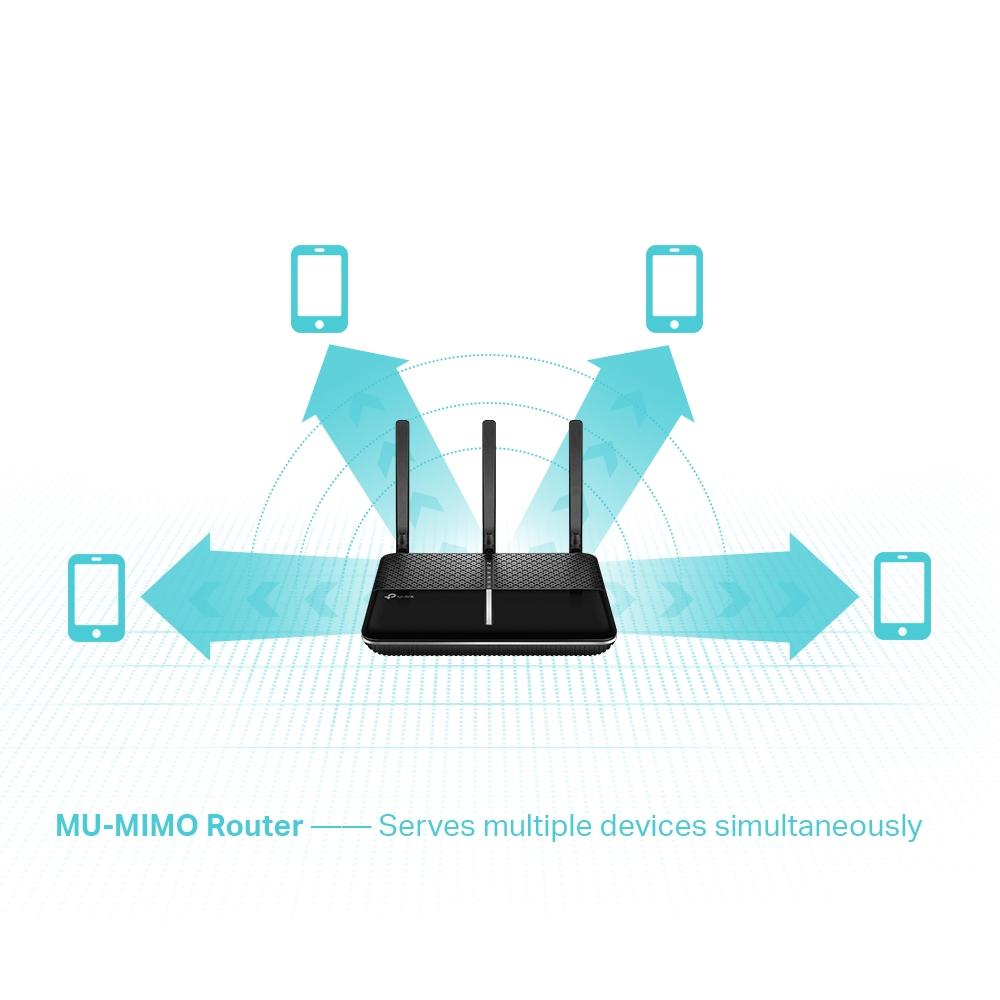

AC2600 MU-MIMO Wi-Fi Router
Specifications
Specifications Archer A10
| Hardware | |
| Ethernet Ports | 4 Gigabit LAN Ports, 1 Gigabit WAN Port |

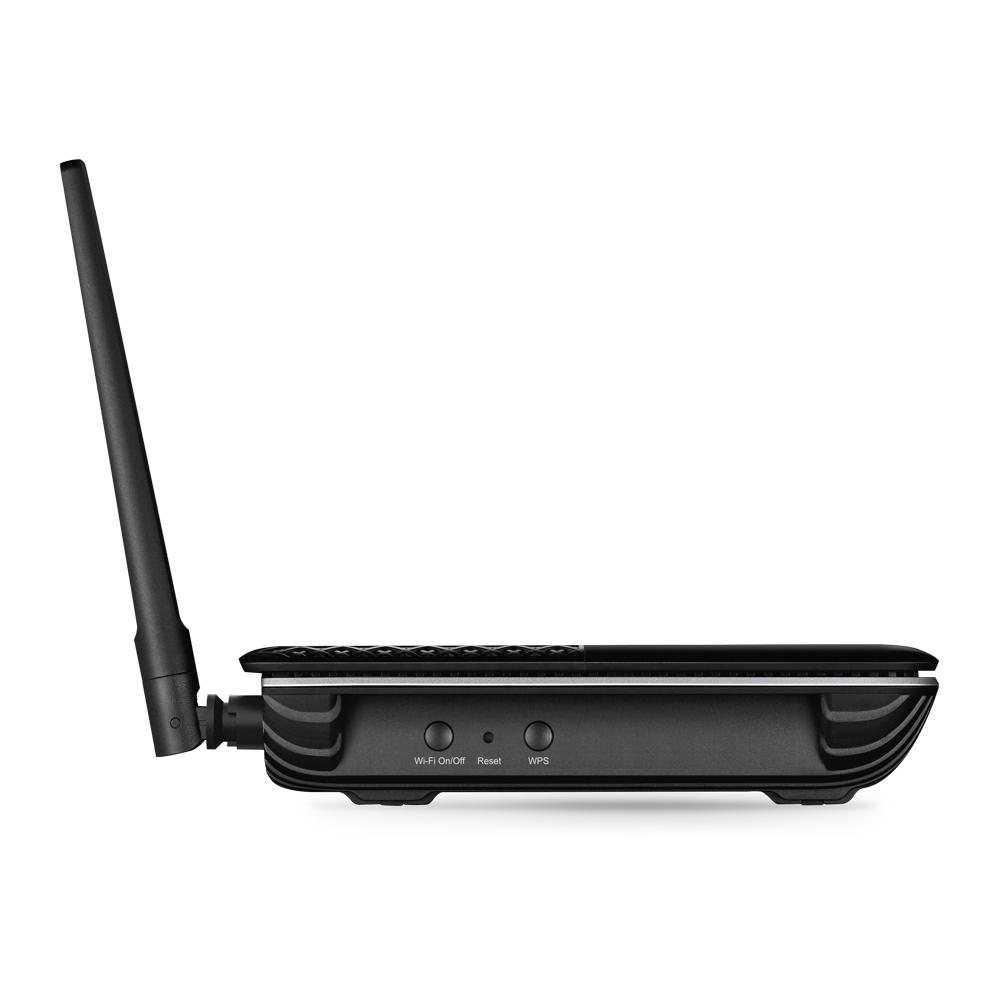

| Buttons | WiFi On/Off Button, Power On/Off Button, Reset Button, WPS Button |
| Antennas | 3 External Antennas, 1 Internal Antenna |
| External Power Supply | 12VDC/1.5A |
| Dimensions (W x D x H) | 8.5 × 6.5 × 1.4 in. (216 × 164 × 36.8 mm) |
| Software | |
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual Access) |
| Management | Access Control, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP, TP-Link |
| Access Control | Parental Controls, Local Management Control, Blacklist, Whitelist |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4GHz Guest Network , 5GHz Guest Network |
| Wireless | |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 1733Mbps at 5GHz, 800Mbps at 2.4GHz |
| Transmit Power | FCC: <30dBm(2.4GHz), <30dBm(5GHz) |
| Reception Sensitivity | 5GHz: 11ac80M MCS9: -64dBm, 11ac80M MCS0: -89dBm 11ac40M MCS9: -68dBm, 11ac40M MCS0: -92dBm 11ac20M MCS8: -72dBm, 11ac20M MCS0: -95dBm 54M: -78dBm, 6M: -96dBm 2.4GHz: 11n40M MCS9: -68dBm, 11n40M MCS0: -93dBm 11n20M MCS8: -73dBm, 11n20M MCS0: -96dBm 54M: -78dBm, 6M: -97dBm |
| Wireless Function | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | Enable/Disable SSID Broadcast, 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS, Wireless MAC Filter |
| Others | |
| Certification | FCC, CE, RoHS, RCM, IC, NCC, BSMI |
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
