TP-Link AXE5400 High Gain Tri-Band Wi-Fi 6E USB Adapter

(0)No Reviews yet
  • SKU: Archer TXE72E
$54.99
  • Manufacturer: TP-Link
  • Quick Installation Guide: Download

Out of Stock

 Open chat or call us for stock status
Shipping Policies | Returns/RMA Policies

Product Information

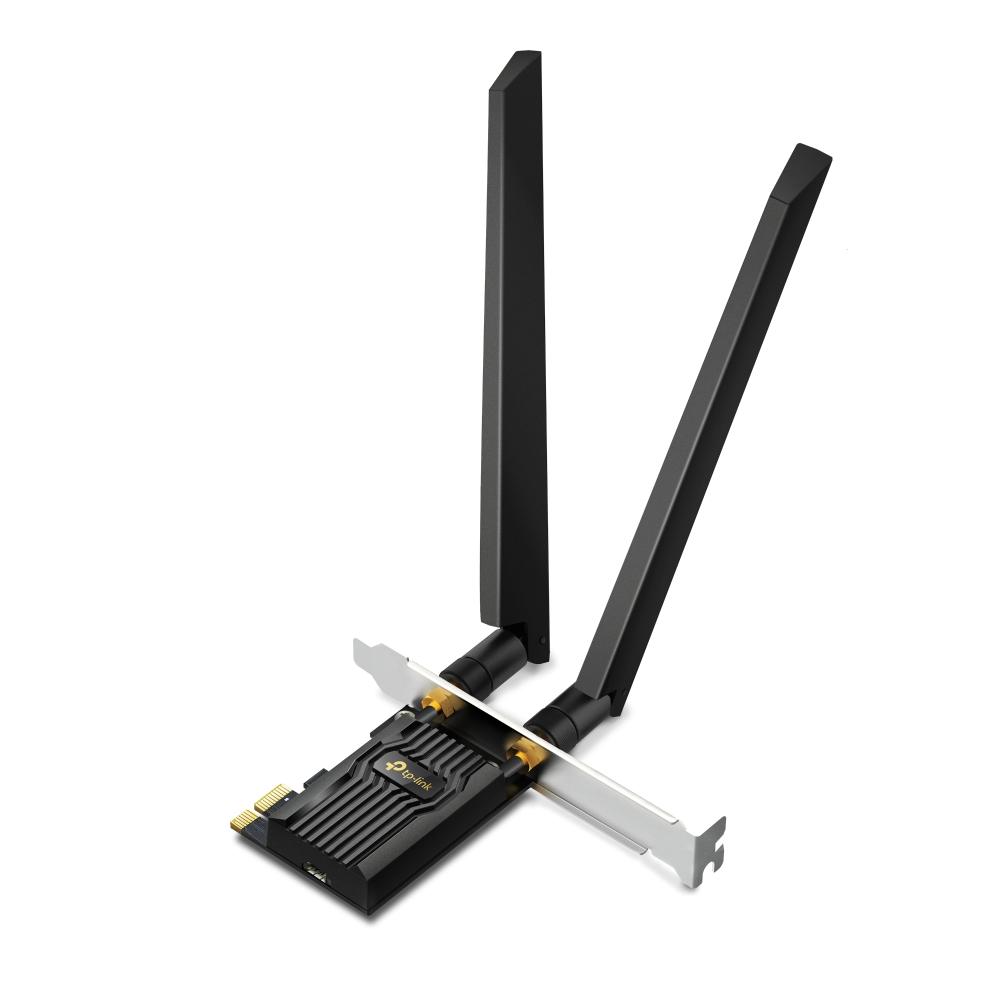

AXE5400 Tri-Band Wi-Fi 6E Bluetooth PCI Express Adapter SPEED: 2402 Mbps at 6 GHz + 2402 Mbps at 5 GHz + 574 Mbps at 2.4 GHz SPEC: 2× High Gain Tri-Band External Antennas FEATURE: Wi-Fi 6E, MU-MIMO, OFDMA, 1024 QAM, HE160, WPA3, Bluetooth 5.2

Specifications

Specifications Archer TXE72E

Dimensions2.2 × 1.4 × 0.4 in (55 × 36 × 11.5 mm)
Antenna Type2× High-Gain Tri-Band Antennas
Wireless StandardsIEEE 802.11a/b/g/n/ac/ax
WLAN Signal Rate
6 GHz:
11ax: Up tp 2402Mbps
5 GHz:
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1732 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity
6 GHz:
11ax HE160 MCS0:-86
11ax HE160 MCS11:-56
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm
WLAN Transmit Power
5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP)
2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP)
6 GHz: 12dBm(FCC)
WLAN ModesInfrastructure mode
Wireless SecurityWEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
CertificationFCC, CE, RoHS
System RequirementsSupported operating systems include Windows 10, 11(64-bit). Currently 6 GHz Band only supported on Windows 11.
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
